SMD Manual Splicing Cart Description
What exactly is this part?

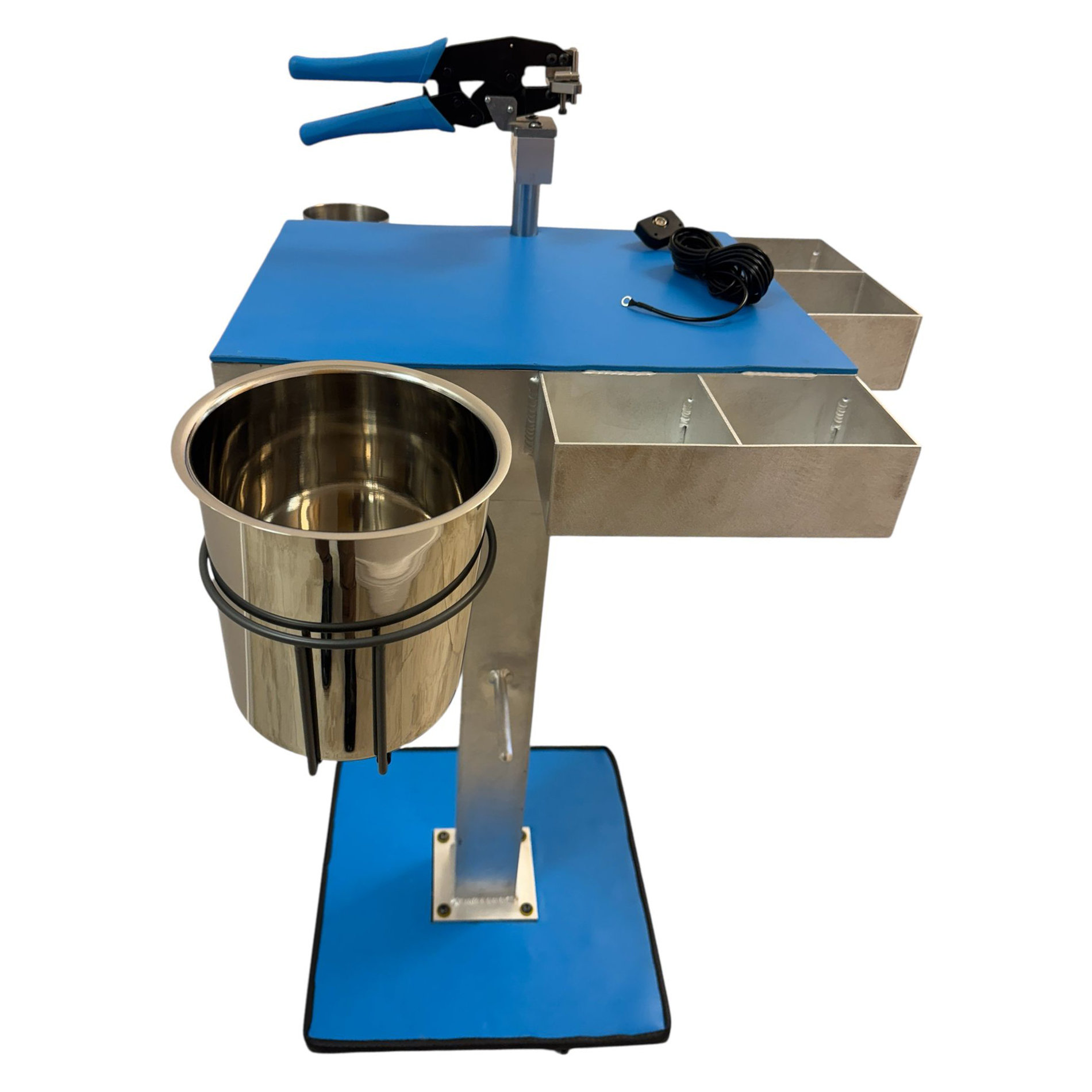

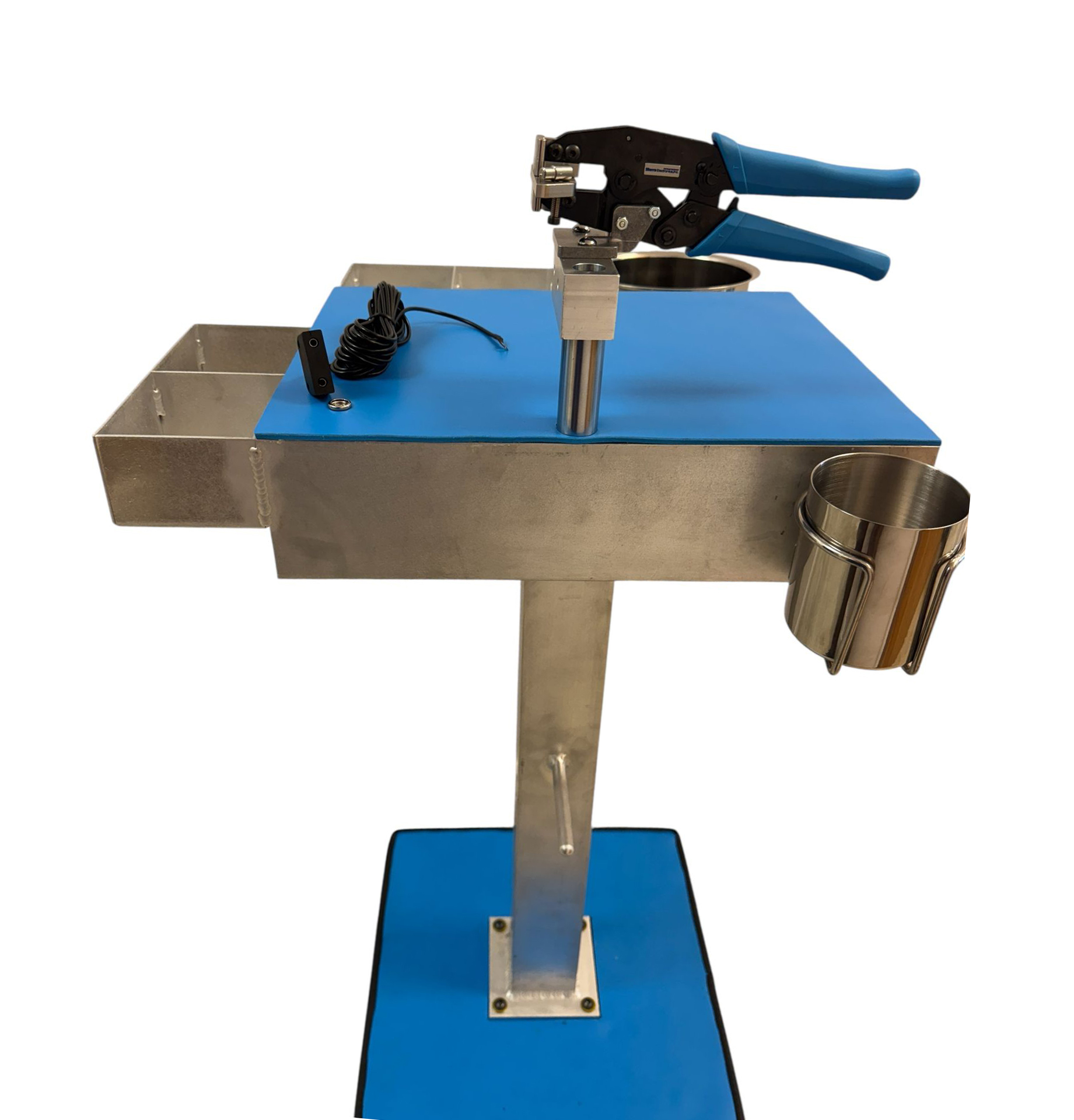

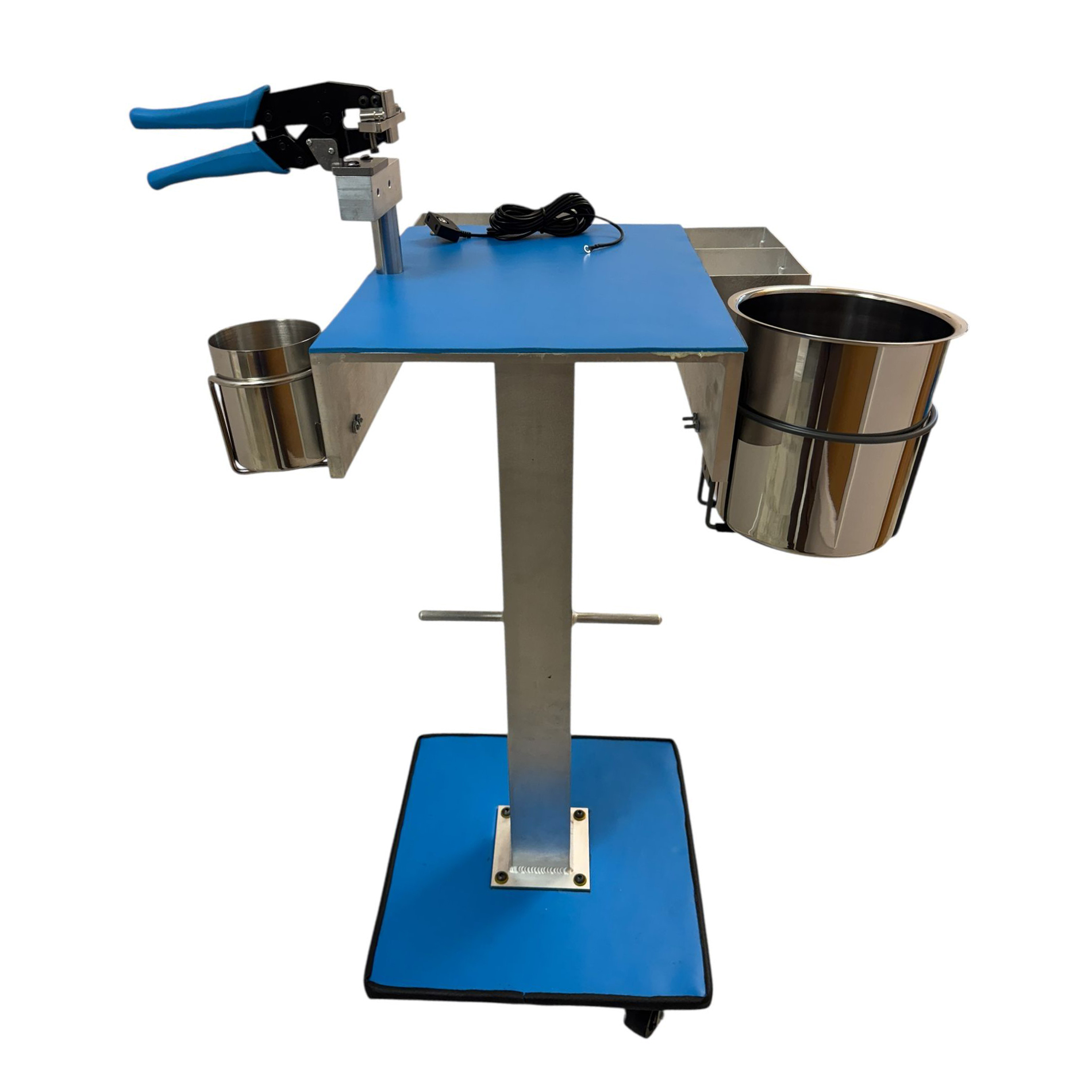

The LOC1278 Splicing Cart is a mobile workstation designed for SMT (surface-mount technology) production lines. It is purpose-built for storing, organizing, and supporting all necessary tools and consumables for carrier tape splicing.
2. Function
The cart provides a dedicated platform for performing SMT reel splices. It reduces downtime by keeping splicing tools, splice tapes, cover tape extenders, and leader tapes organized and within reach. This ensures operators can splice reels quickly and accurately without disrupting production.
3. How it is used
- The cart is rolled directly to the feeder bank or splice location.
- Reels or carrier tapes are staged on the cart and aligned for splicing.
- Using the mounted splicing tool, operators join two tapes with splice tape or connectors to maintain proper alignment.
- The spliced reel is loaded back into the feeder, allowing the machine to continue without interruption.
- The cart’s built-in storage keeps all splice supplies organized for repeat use.
4. Materials
- Frame & structural supports: Powder-coated aluminum for strength and durability.
- Shelves & trays: Aluminum with ESD-safe mats and bumper to prevent static buildup and protect sensitive components.
- Wheels (casters): Steel housings with anti-static polyurethane wheels.
- Reel Holders: coated aluminum for strength and durability.
This combination provides both durability and compliance with ESD-sensitive manufacturing environments.
When your production floor doesn’t need a robot to solve every problem—but it does need a smarter way to splice—this cart steps in. The SMD Manual Splicing Cart is exactly what it sounds like: rugged, fast, and built for teams who know their tools, trust their hands, and don’t have time for weak links.
It’s a mobile splicing command center, designed to give your crew everything they need to join carrier tapes with precision and zero chaos. We’re talking: steady surface, right height, no slipping, no bending, and no fighting with parts that weren’t made for real-world work.
You get organized trays for tools, slots for reels and tape, ESD-safe work zones, and everything locked down on a frame that doesn’t wobble when you lean in. Whether you’re running 8mm or 44mm tapes, this cart’s layout keeps everything tight, aligned, and ready for action.
Manual splicing doesn’t mean slow, not with this cart. It means you stay in control—of tape tension, pressure, angles, timing. No software to fail. No motor to jam. Just pure mechanical reliability in a system designed to move with you, not against you.
You roll it up to the line. Splice. Load. Roll to the next. No bottlenecks. No waiting. Just speed, muscle memory, and real efficiency.
Perfect for low to mid-volume production environments, tight budgets, or teams who like doing things with purpose instead of plugging them in and crossing their fingers.
It’s not automated. It’s not overbuilt. It’s just built right.
SMD Manual Splicing Cart Features
Heavy-Duty, No-Nonsense Frame
This isn’t a toy. We built it to take a beating. Steel frame, sturdy wheels, and an ESD-safe surface that’s made to last. **Lean on it, roll it, move it—**it handles whatever you throw at it without flinching.
Ergonomically Designed
Splicing isn’t about slouching or awkward bends. This cart’s height and layout make sure your team stays comfortable and efficient, no matter how long the shift. Get more done without the back pain.
Precision Alignment Every Time
Forget manually guessing if your tapes are lined up. With built-in alignment guides and secure tape slots, you can splice like a pro without worrying about crooked joins or misfeeds.
ESD-Safe Workstation
Your components deserve better than static interference. The cart is fully ESD-safe, keeping your sensitive parts protected while you work—every splice, every time.
Organized Tool Storage
Tools, reels, extra parts—all neatly stored within reach. No more digging around for the right shim, cutter, or tape. Grab what you need and get back to splicing.
Tight, Secure Tape Holders
Hold your tape firmly in place while you work. The secure tape holders keep everything aligned, eliminating tape slippage and ensuring perfect tension every time you splice.
Manual Operation for Full Control
No electronics, no motors. This is all about hands-on control: You splice with precision, you adjust the tension, you make the call. Manual splicing gives you full flexibility.
Compact and Mobile
Easily maneuverable around your workspace. Lockable casters keep it stationary when needed, and the cart fits seamlessly into tight spots or crowded production areas.
Built for Reliability
There’s nothing here that’s going to fail on you in the middle of a run. The robust design means you can depend on it, day in and day out, without constant maintenance or repairs.
SMD Manual Splicing Cart FAQs
1. What’s so special about this manual splicing cart?
It’s simple. It gives you control. No motors to mess with. No tech failures. Just a rock-solid design that lets you splice tape precisely, without delays or fuss. Plus, it’s mobile, ESD-safe, and built to last.
2. Do I need any special skills to use it?
If you know how to splice tape, you’re good. The cart’s ergonomic design makes everything easier. Align, cut, splice—simple steps that anyone on your team can follow without hours of training.
3. Is this cart compatible with all types of tapes?
From 8mm to 56mm, paper or plastic—you name it. If it’s a standard SMT carrier tape, it fits. Custom widths? Just let us know. We’ll make it work for your setup.
4. How durable is this cart? Will it last in a high-traffic production environment?
Absolutely. We’re talking steel frame, industrial-grade wheels, and a tough ESD-safe surface. It’s built for the floor, not the office. Throw some heavy work its way, and it won’t blink.
5. Can I splice multiple reels at once with this cart?
Not exactly. This cart’s made for one splice at a time. But it’s fast—you’ll be through those reels quicker than you think, and since everything’s organized, the process is efficient and straightforward.
6. Does it need power?How do I maintain this cart?
Minimal maintenance. Keep it clean, check the tape holders for wear, and make sure the casters roll smoothly. There’s no magic here—just solid, functional gear that’ll keep running as long as you treat it right.
7. Is this cart mobile? Can I move it around easily?
Yep. Locking casters let you roll it across your production floor, then lock it into place when you need to. It’s compact, so it won’t take up too much space in tight setups either.
