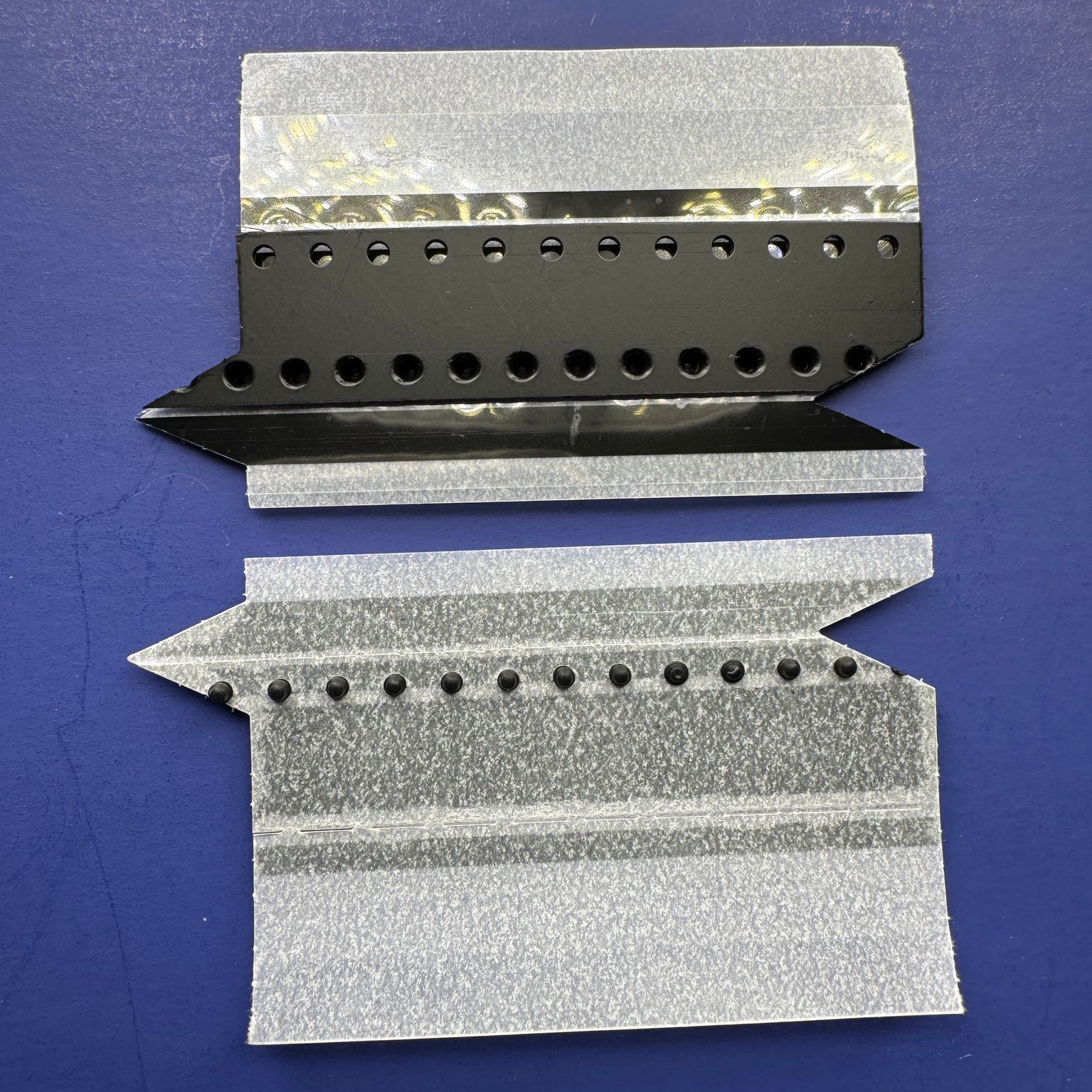

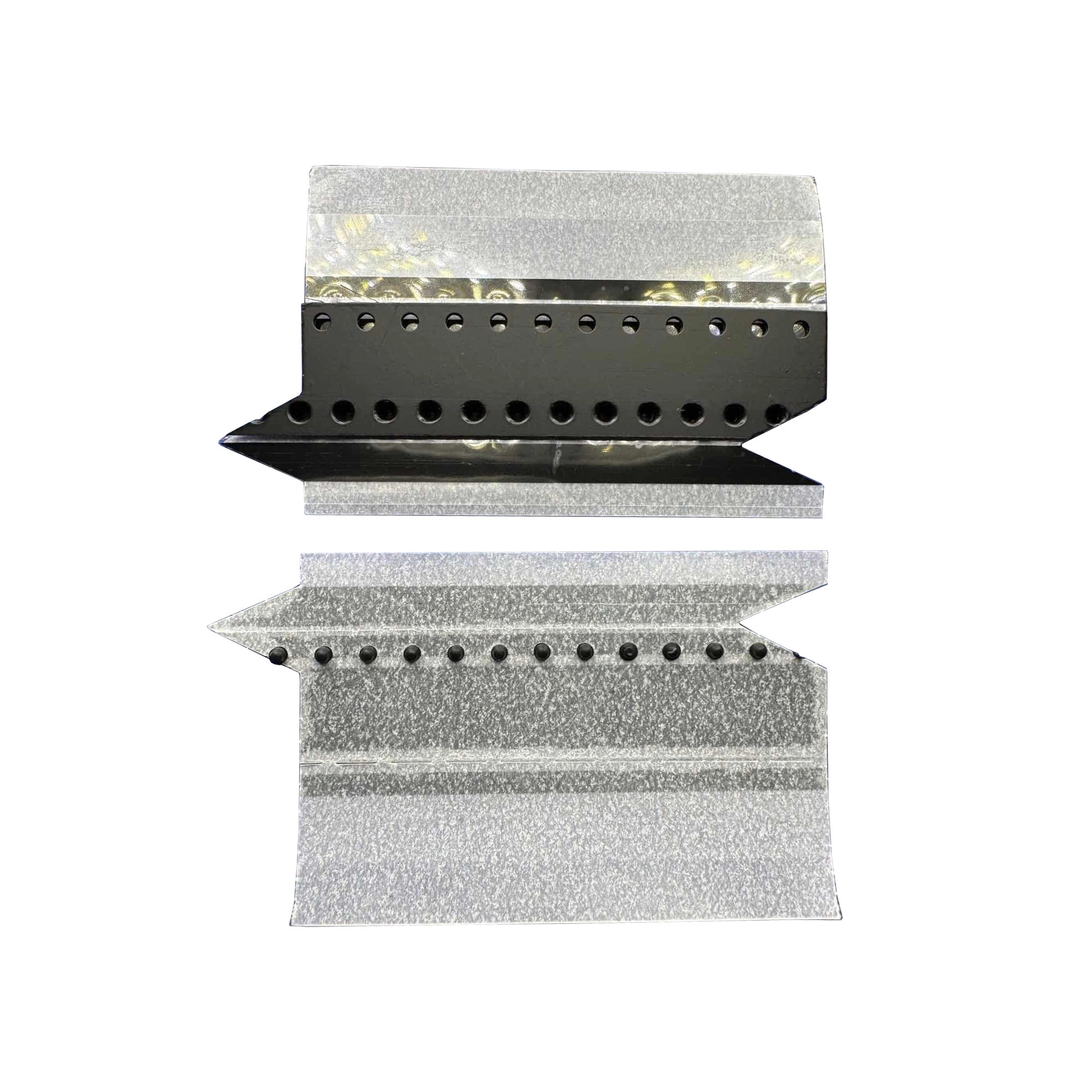

Splice Tape with Embedded Jig Base Alignment Pins

Ensure precise and efficient splicing with our Splice Tape featuring embedded jig base alignment pins. Designed for seamless SMT reel splicing, this tape guarantees accurate alignment and secure joints, reducing downtime and improving production consistency. Ideal for high-speed automated assembly lines.

We Accept

Splice Tape with Embedded Jig Base Alignment Pins Description

Our Splice Tape with Embedded Jig Base Alignment Pins is engineered for precision and reliability in SMT (Surface Mount Technology) production environments. This high-performance splice tape simplifies the splicing process by incorporating built-in alignment pins that securely fit into a jig base, ensuring perfect tape alignment every time.

Designed to minimize human error and reduce machine downtime, the embedded pins guide the tape into exact position, creating a stable and consistent splice. This results in smoother feeding, fewer component misplacements, and enhanced production efficiency.

Ideal for high-speed pick-and-place machines, the tape is compatible with a wide range of carrier tapes and ensures strong, long-lasting adhesion. Whether you’re splicing 8mm, 12mm, or wider tapes, this solution supports a seamless integration into your SMT workflow.

Splice Tape with Embedded Jig Base Alignment Pins Features

Key Features:

  • Built-in jig base alignment pins for precise positioning
  • Strong adhesive for secure and reliable tape bonding
  • Reduces splicing errors and machine stoppages
  • Compatible with various SMT carrier tape sizes
  • Improves productivity and product quality

Perfect for electronics manufacturers aiming for high output and minimal interruption, this splice tape is a must-have for streamlined, professional SMT assembly.

Splice Tape with Embedded Jig Base Alignment Pins FAQs

1. What is splice tape with embedded jig base alignment pins?

This is a specialized splice tape designed for SMT production, featuring built-in alignment pins that fit into a jig base to ensure precise tape alignment during splicing.

2. What are the benefits of using this splice tape?

It improves alignment accuracy, reduces operator error, minimizes machine stoppages, and ensures smooth tape feeding during automated component placement.

3. Is this tape compatible with all carrier tape sizes?

Yes, it is available in versions compatible with standard SMT carrier tape widths such as 8mm, 12mm, 16mm, and more.

4. Do I need a special jig for this tape?

Yes, the embedded pins are designed to align with a compatible jig base, which helps position the tape perfectly for splicing.

5. Can this splice tape be used with high-speed pick-and-place machines?

Absolutely. It is designed for use in high-speed SMT production environments and maintains reliable performance during fast automated processes.

6. How strong is the adhesive on this splice tape?

The tape features a high-strength adhesive that ensures secure bonding between tape ends, preventing detachment during reel feeding.

7. Is training required to use this splice tape?

Minimal training is required. The alignment pins and jig base system make it easy to achieve accurate splicing even for operators with limited experience.
