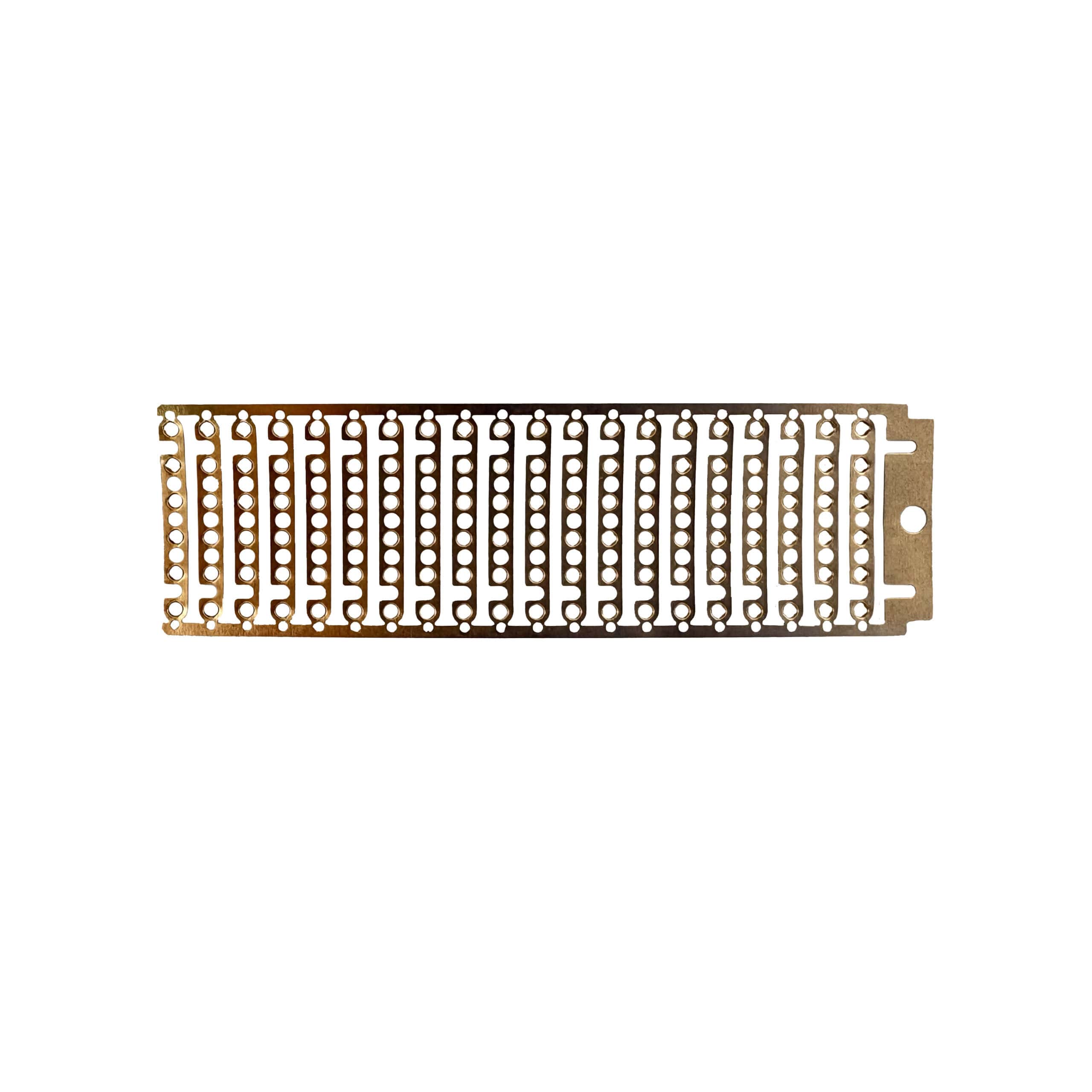

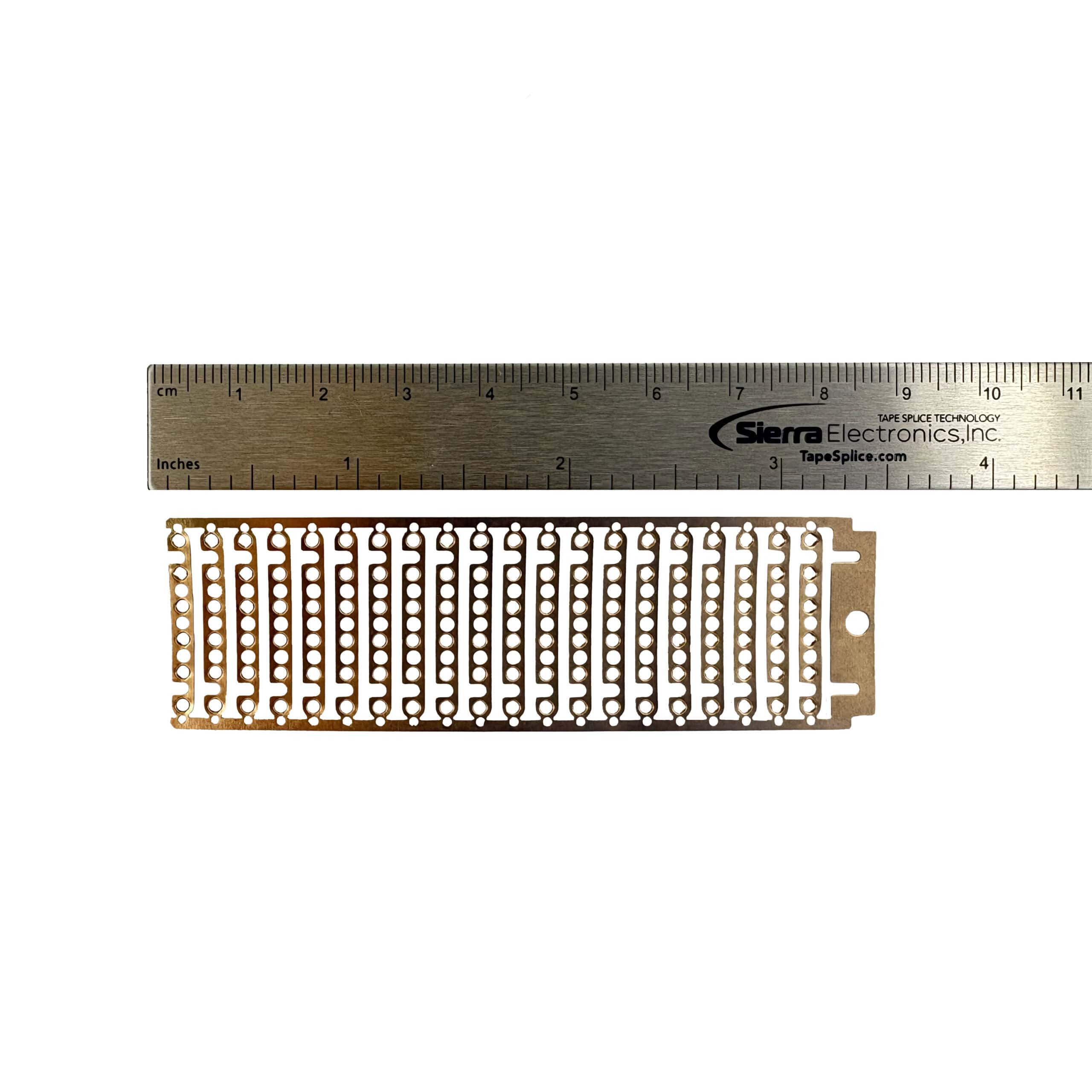

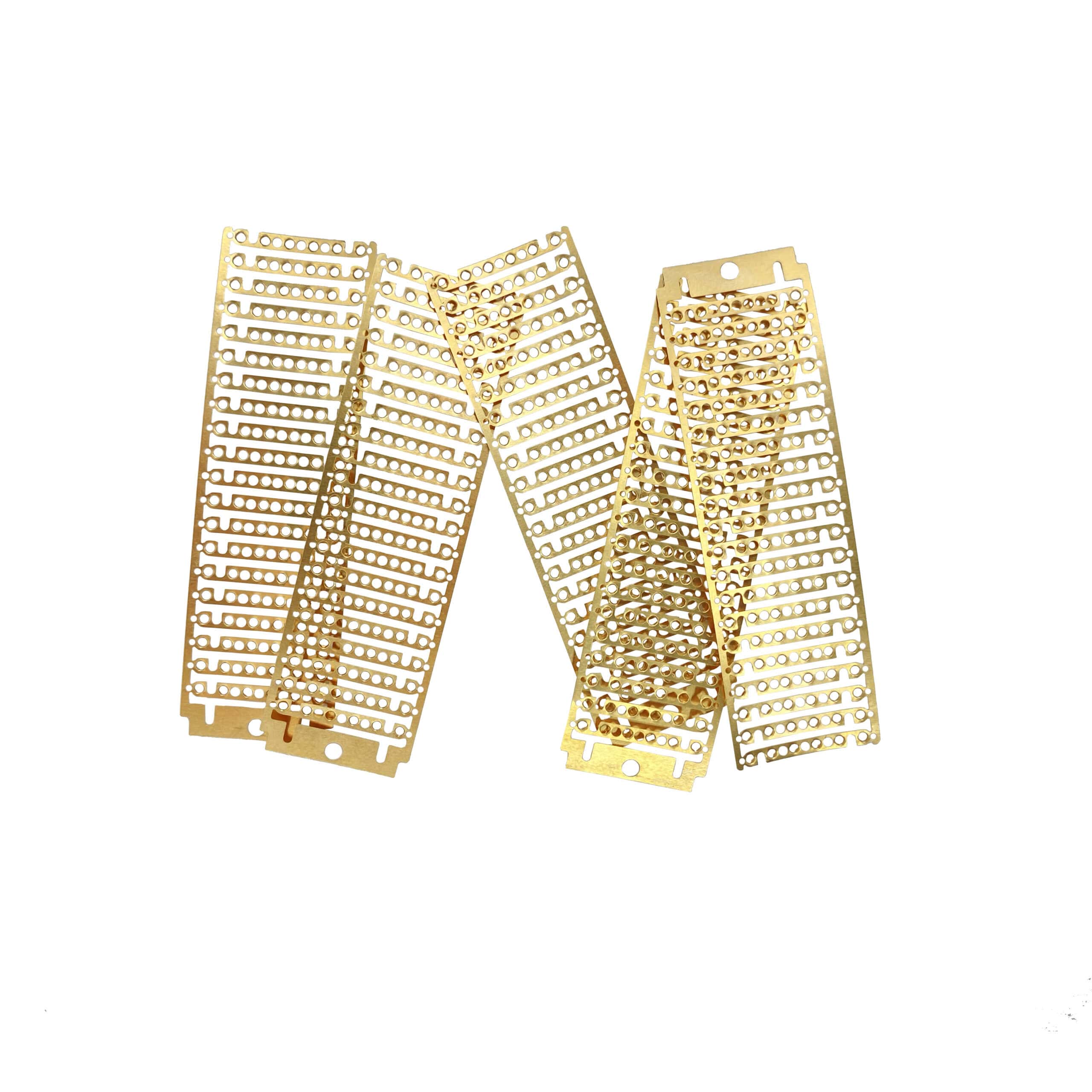

Splicing Shims Clip Frame (500 units per box) is an efficient and effective method for accurately bonding component tapes in surface-mount technology (SMT) assembly. Compliant with standard splicing devices, this clip frame assists in achieving accurate alignment and good joint between reels, with a minimal risk of misalignment during assembly. Long-lasting construction renders it suitable for application in high-speed production operations. With 500 pieces per frame, it offers a cost-effective solution for batch production to reduce the number of replacements needed and ensure continued production. Ideal for industry experts looking to automate their SMT processes by enhancing efficiency and reliability, this clip frame is a priceless asset to any production line. You will need our tool TSP-041709.
$78.50
Sierra Electronics’ SMT Splice Shim Cartridge is the industry’s most precise and reliable splicing solution for high-volume SMT assembly. Each cartridge contains 20 brass splice shims, punched using Chicago Cutting Die Company tooling and engineered to run flawlessly in our Stapler-Style / Semi-Automatic SMT Splicing Tool—built in Santa Fe, NM by Los Alamos machinists using hardened carbide cutters.
Unlike the imported Chinese copper shim frames that flood the market, Sierra’s U.S.-made brass shims hold their tooth geometry, maintain perfect alignment, and deliver jam-free performance in modern pick-and-place systems running 0201 and 01005 components.
This is the professional-grade, American-built SMT splicing solution trusted by aerospace, medical, defense, and high-reliability manufacturing.
20-Splice Brass Shim Cartridge
High-capacity frame lets operators run 20 consecutive splices before reloading, reducing downtime on busy SMT lines.
Precision-Cut Using Chicago Cutting Die Tooling
Made in the USA – No Copper Imports
Chinese copper shims deform, crush under pressure, and cause feeder jams.
Sierra Electronics’ brass shims maintain strength, tooth shape, and splice flatness under all feeder loads.
Compatible With All Major Pick-and-Place Platforms
Runs perfectly on Fuji, Panasonic, Siemens / ASM, Mycronic, Yamaha, Juki, Samsung, Sanyo, Hitachi, Assembleon, and Philips.
Built for Sierra’s Stapler-Style / Semi-Automatic Splicing Tool
Machined in Santa Fe by Los Alamos precision machinists.
| Category | Chinese Copper Shims | Sierra + Chicago Cutting Die Brass Shims |
|---|---|---|
| Material | Soft copper, inconsistent hardness | Industrial brass engineered for mechanical splicing |
| Accuracy | ±0.15–0.25 mm wander | ±0.001–0.003 in precision |
| Tooth Geometry | Deforms, crushes, causes drift | Perfect teeth, consistent bite, no drift |
| Feeder Behavior | High jam rates, mis-picks | Smooth feeding, zero jamming |
| Component Sizes | Fails on 0201/01005 | Optimized for 0201/01005 |
| Lifecycle | Short-lived, burrs quickly | Long-run accuracy using hardened U.S. dies |
| Support | No warranty, no service | One-year warranty, USA-made |
A poorly made copper shim can:
A precision U.S.-made brass shim delivers:
Effortless Organization
The clip frame design ensures that your 500 shims are neatly stored and easy to access. No more digging through loose parts—just grab what you need, when you need it.
Premium Construction
Crafted from durable, high-quality materials, these shims are built to last. Whether you’re handling heavy machinery or delicate electronics, they’ll maintain their form and function, ensuring consistent reliability.
Precision for Every Task
Each shim is carefully manufactured to uniform thickness and size, providing you with the accuracy required for precise alignment and optimal performance in every job. Perfect for mechanical and electronic applications where detail matters.
500 Shims per Box – Bulk Convenience
Get a large, economical supply in one box. With 500 pieces, you can easily take on high-volume tasks or long-term projects without worrying about running out mid-task. Bulk packaging means better cost-effectiveness.
Versatile Application
These shims are ideal for a range of splicing and alignment tasks in industries like electronics, machinery, and assembly lines. The flexibility of this product makes it an essential tool for a variety of tasks, no matter the scale.
Minimize Waste
The clip frame allows for quick and controlled dispensing—you use only what you need, reducing waste and keeping your workspace tidy. Efficient use of materials saves both time and money.
Time-Saving Convenience
No more searching for misplaced parts. The clip frame packaging offers a structured, easy-to-grab solution, ensuring that you save time in every step of your work process.
Secure and Safe Handling
Each shim is securely held in place within the clip frame, ensuring no pieces are lost or damaged. The frame also makes it easier to handle the shims safely without risk of injury or mishandling.
Long-Term Durability
Designed for both short-term precision tasks and long-term heavy-duty use, these shims stand up to the test of time, maintaining their effectiveness without degradation.
The clip frame design is a game-changer. It keeps all 500 shims neatly organized and easily accessible, so you won’t waste time searching for loose parts. It’s efficient, compact, and saves you from the hassle of dealing with scattered pieces.
Absolutely. These shims are versatile, designed to work seamlessly in both mechanical and electronic assemblies. Whether you need precise alignment for machinery or components in delicate electronic devices, these shims will deliver consistent results.
While these shims are designed for durability, they are typically used once per task. However, they hold up well under pressure, so if your application allows, they can be reused a few times. Always check the shim’s condition before reusing it.
It’s incredibly straightforward. The clip frame is designed for easy handling. Each shim is securely placed in the frame, ensuring no loose pieces. When you need a shim, simply tear it off—no mess, no fuss.
Precision is key. Each shim is manufactured to uniform thickness, ensuring your tasks remain accurate, whether you’re aligning machinery or performing detailed splicing work. These shims are built for professionals who demand exacting standards.
Absolutely! With 500 pieces per box, these shims are perfect for high-volume projects. Whether you’re working in assembly lines, electronic assembly, or any other field, you’ll have more than enough supply to keep your work moving without interruptions.
We have manufactured a full range of high quality SMT Splicing Products for the contract and OEM manufacturing industry since 1998. Professional excellence is our game and we are committed to ongoing improvements in all aspects of the business.
We are the only tape splicing manufacturer in the United States and our headquarter location in beautiful Santa Fe, New Mexico allows us to meet tight delivery requirements to anywhere in North America.
