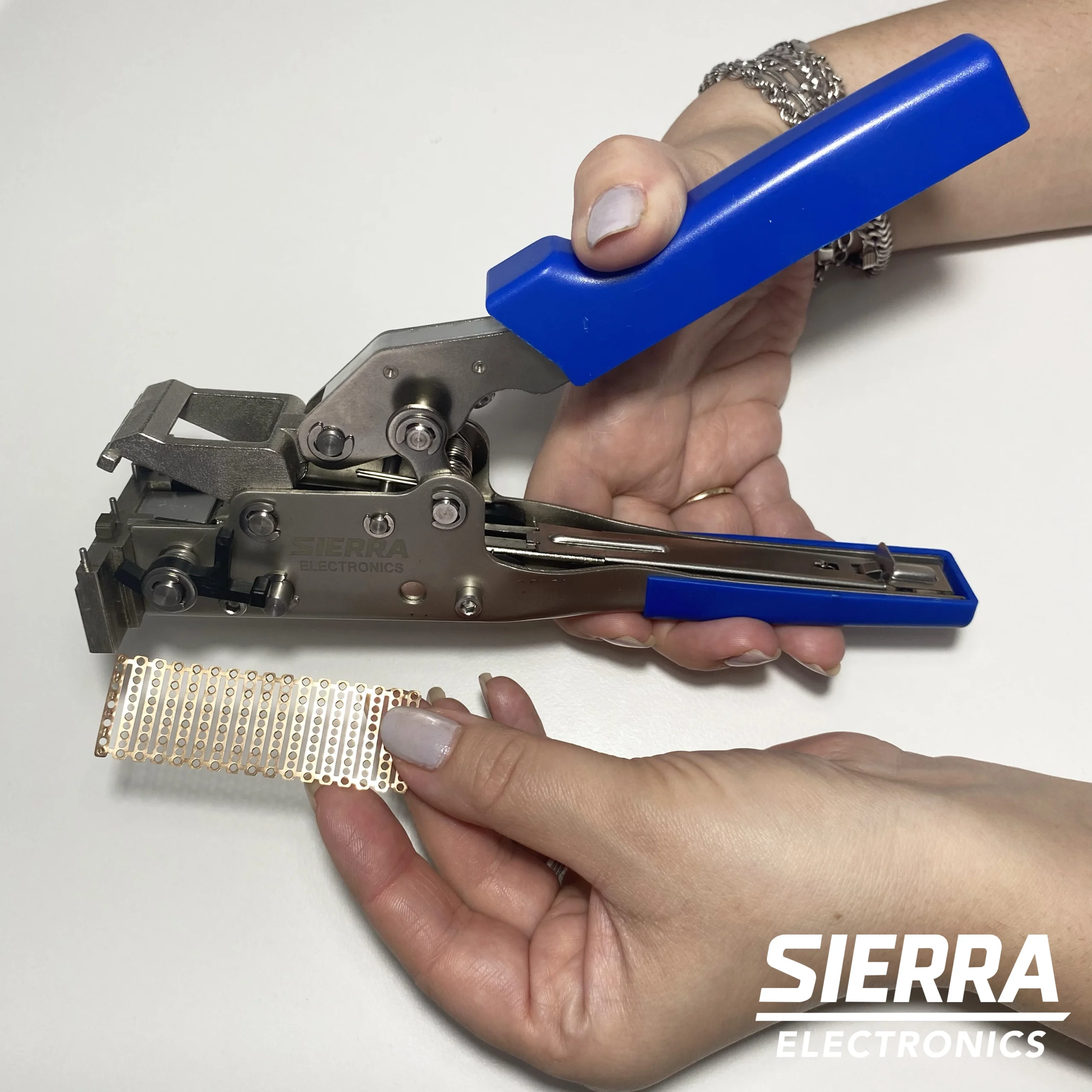

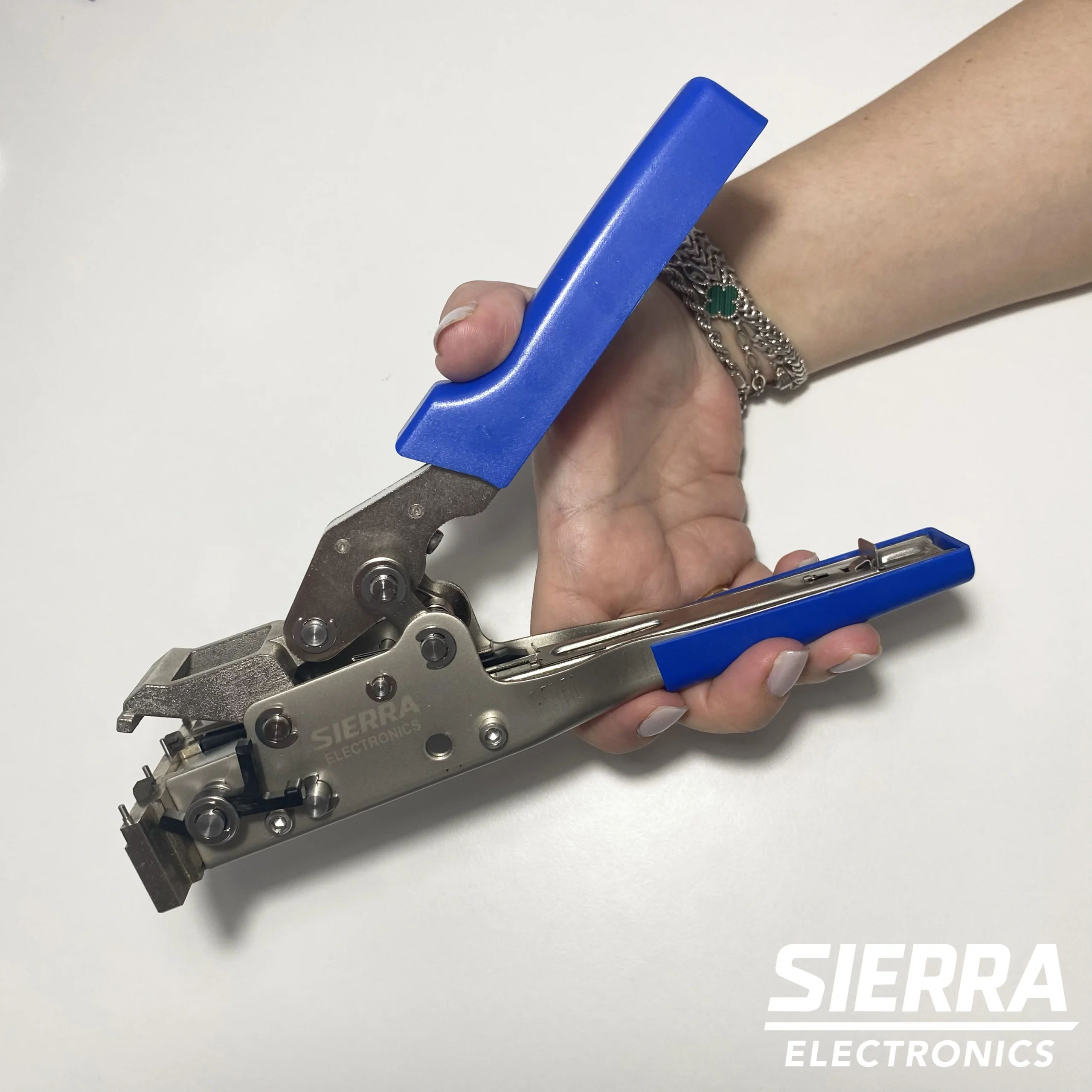

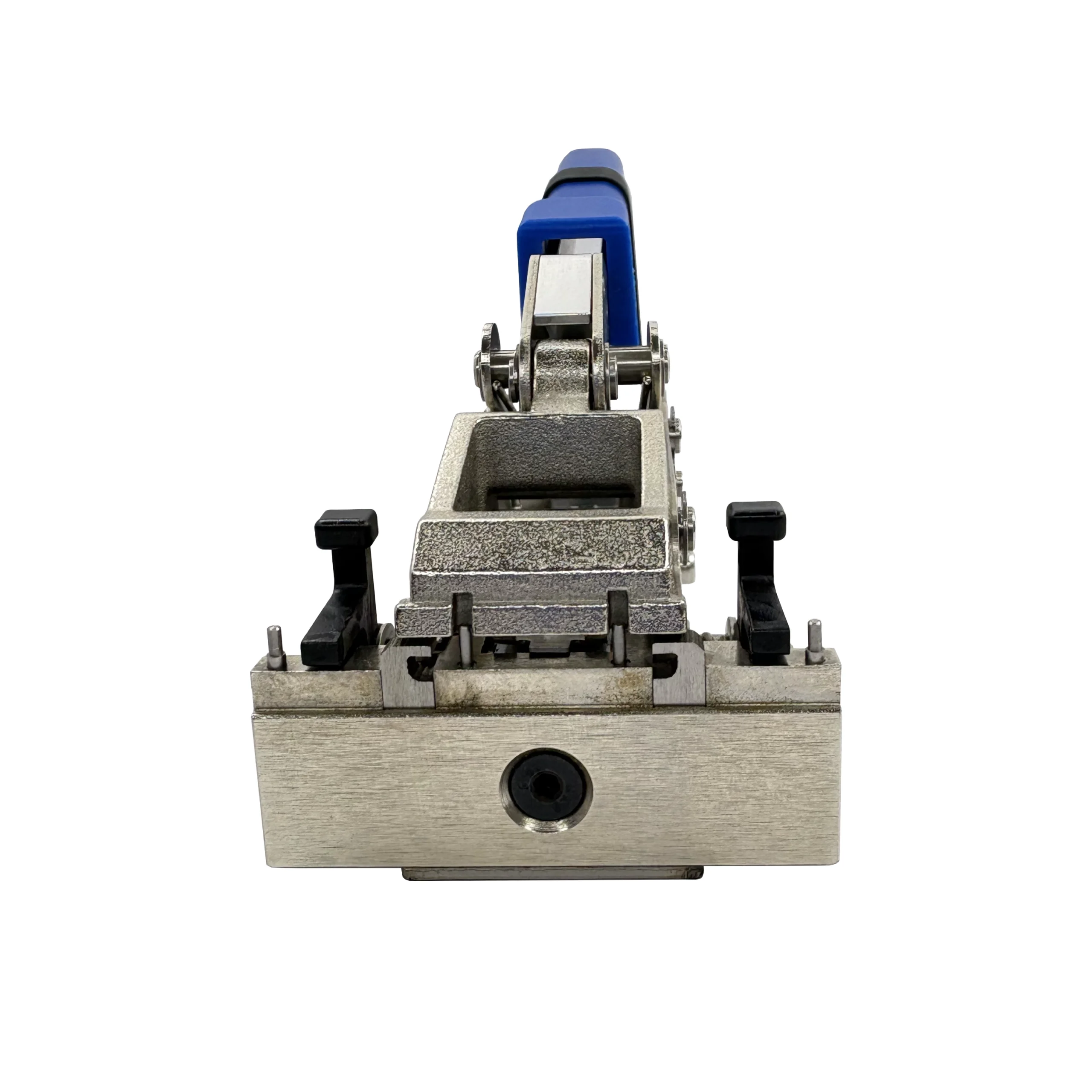

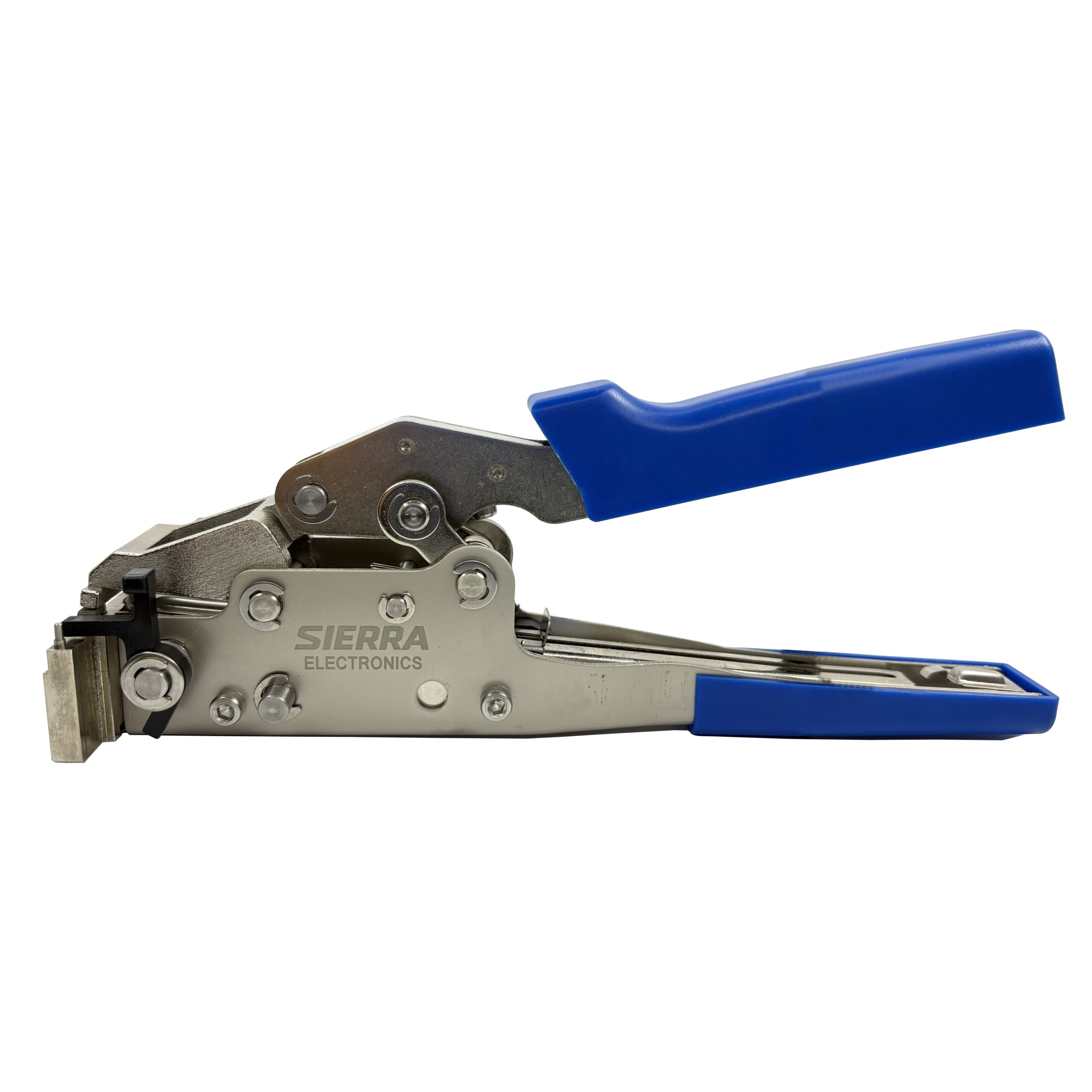

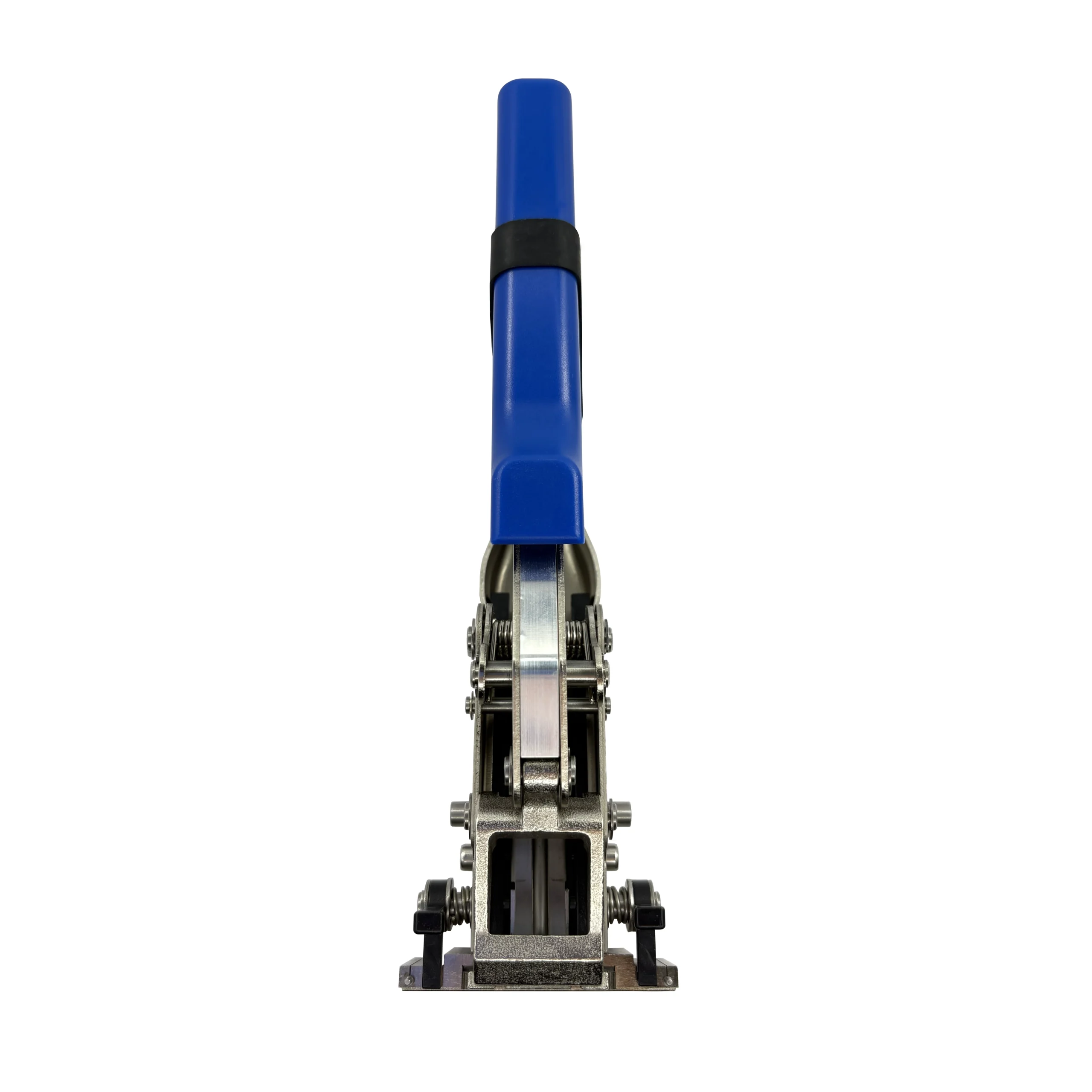

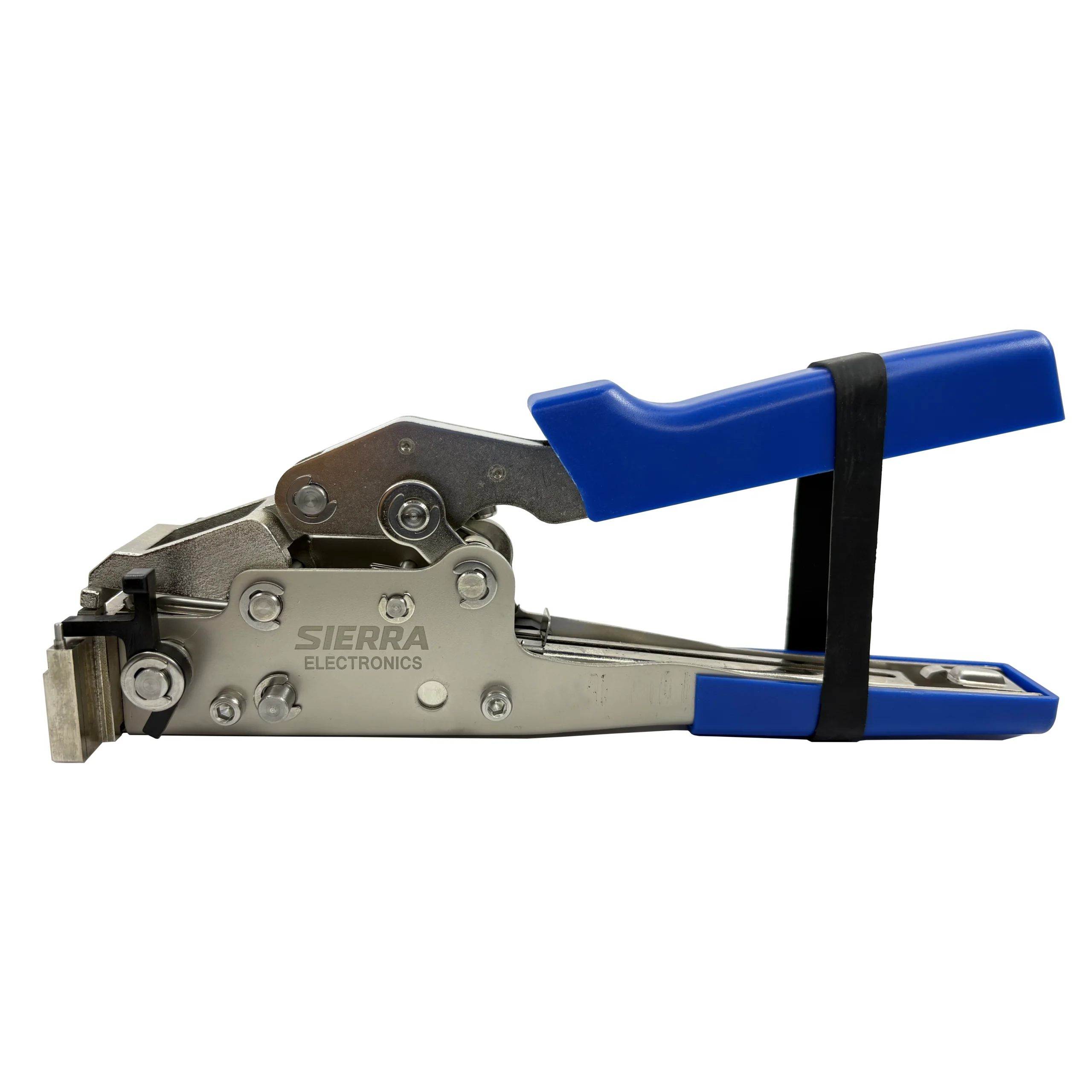

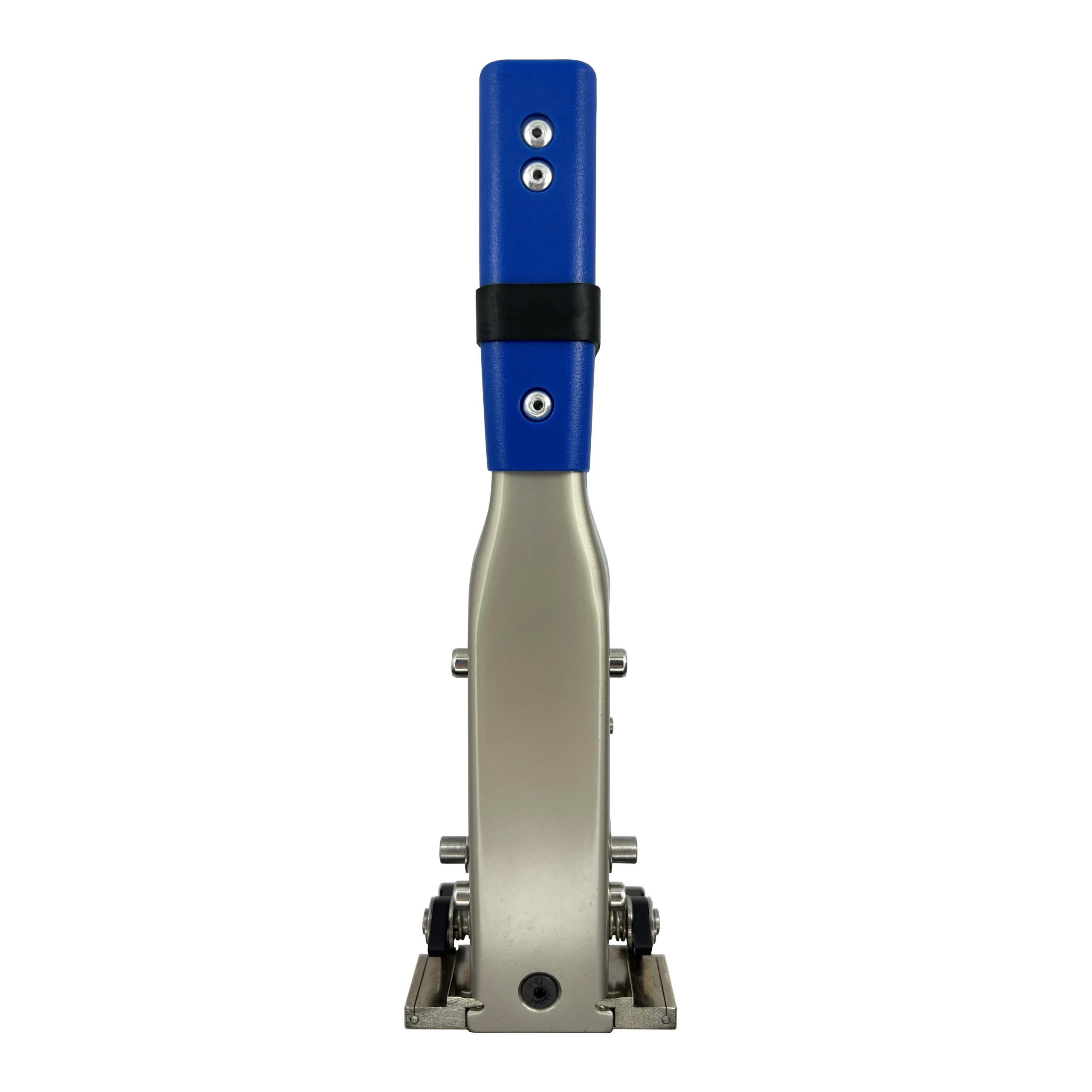

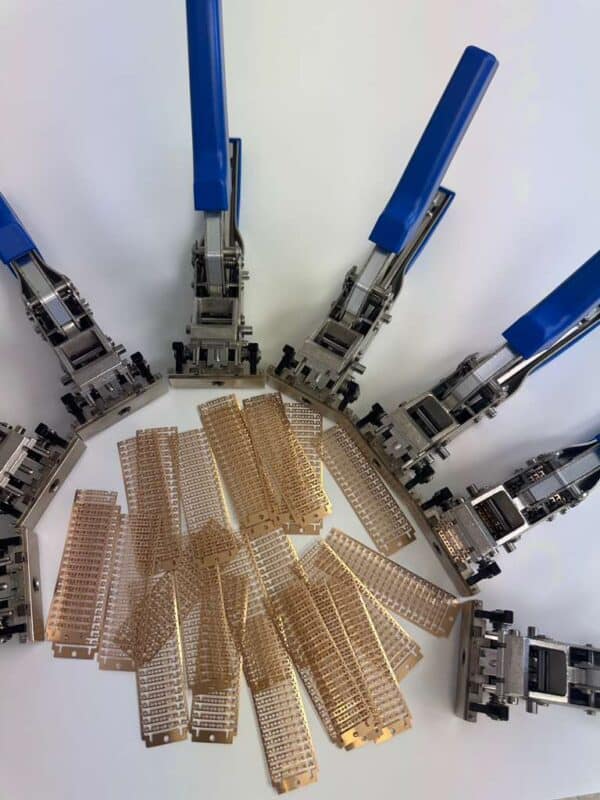

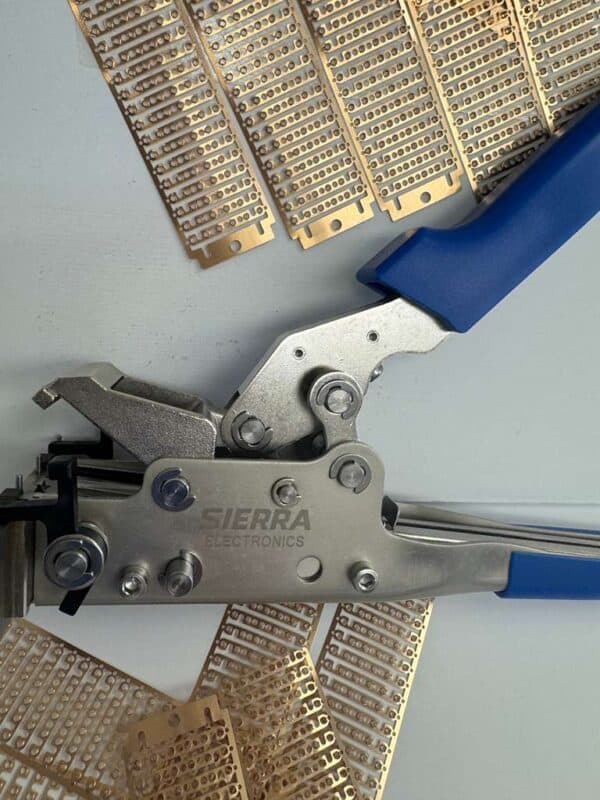

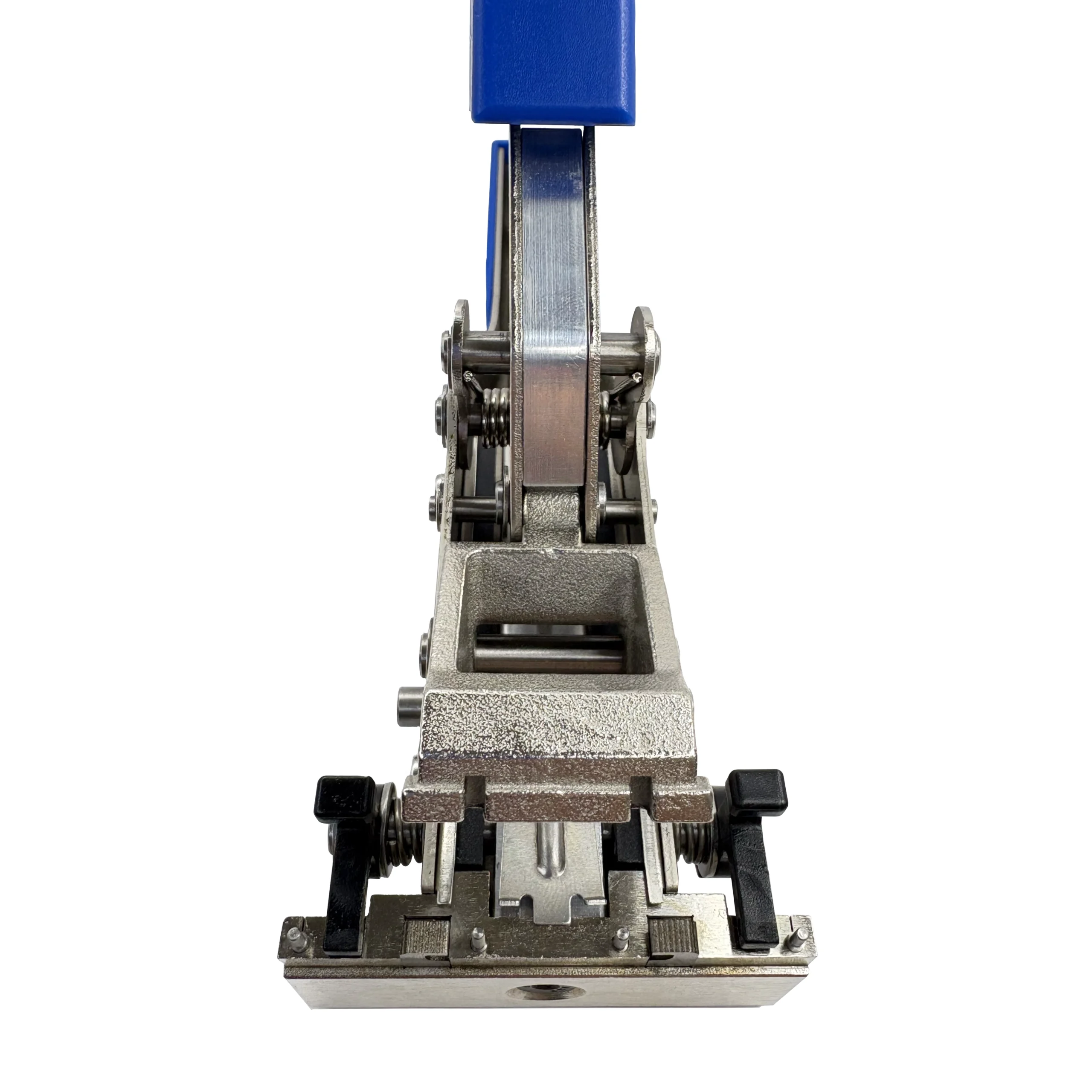

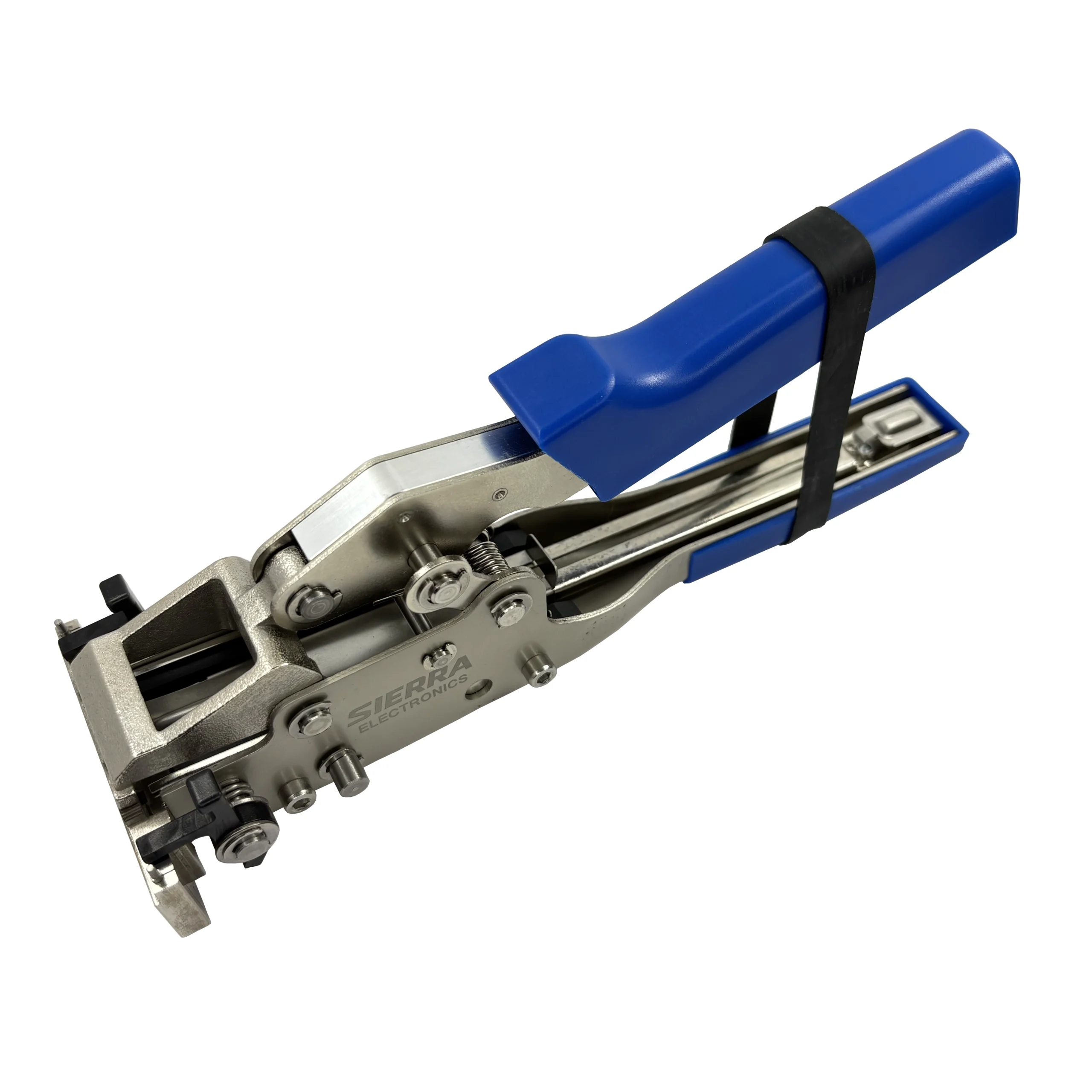

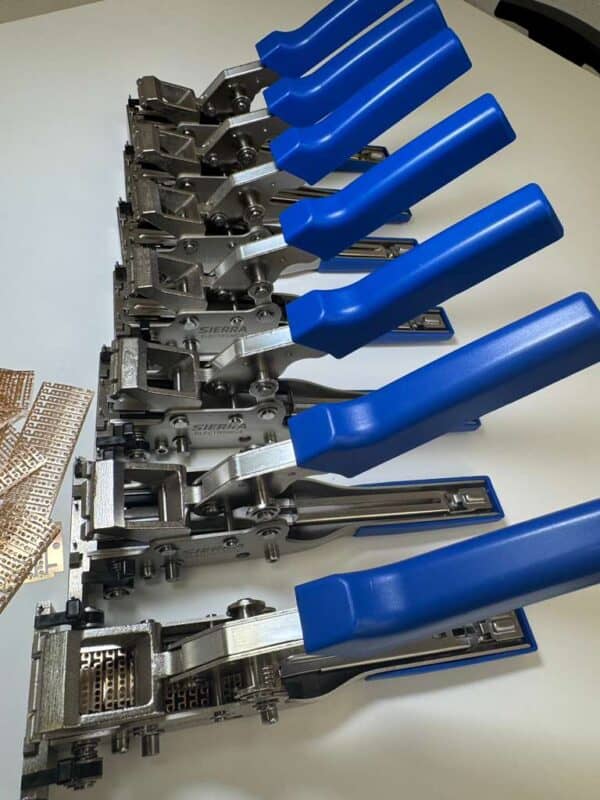

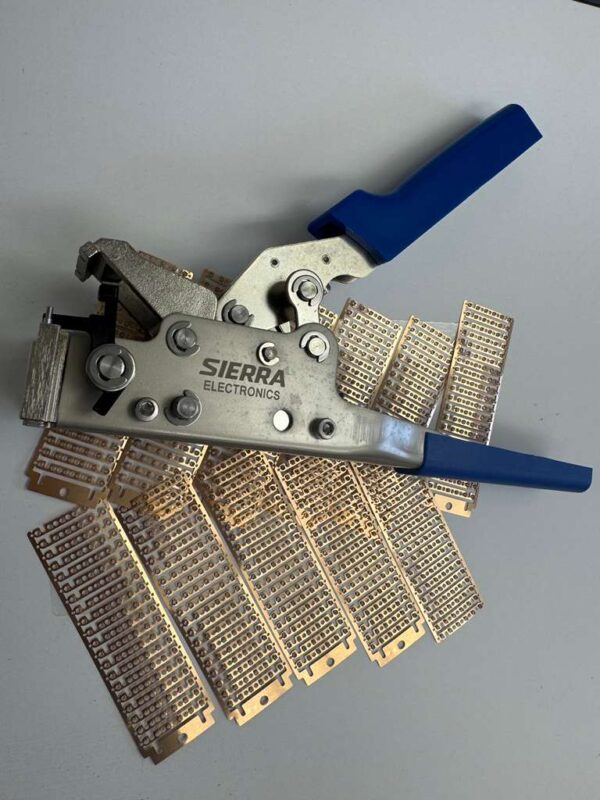

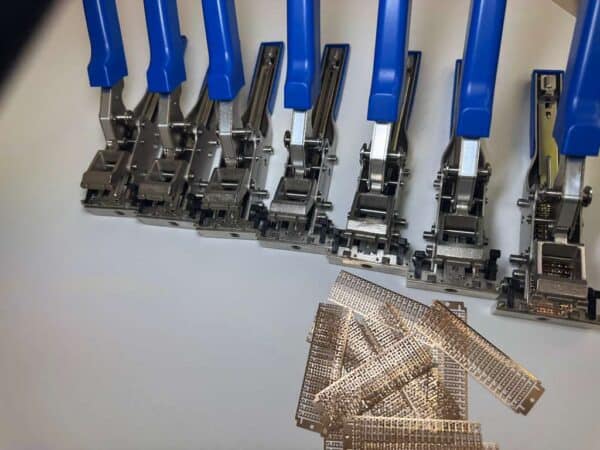

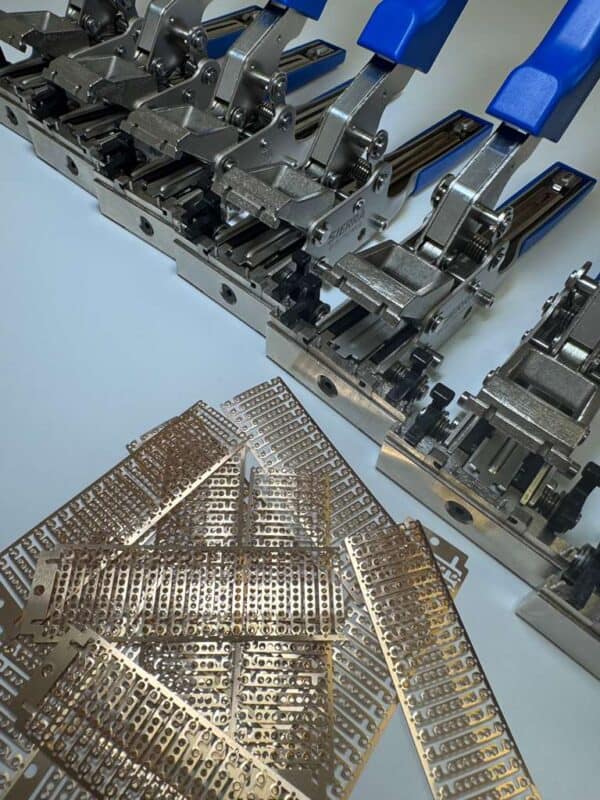

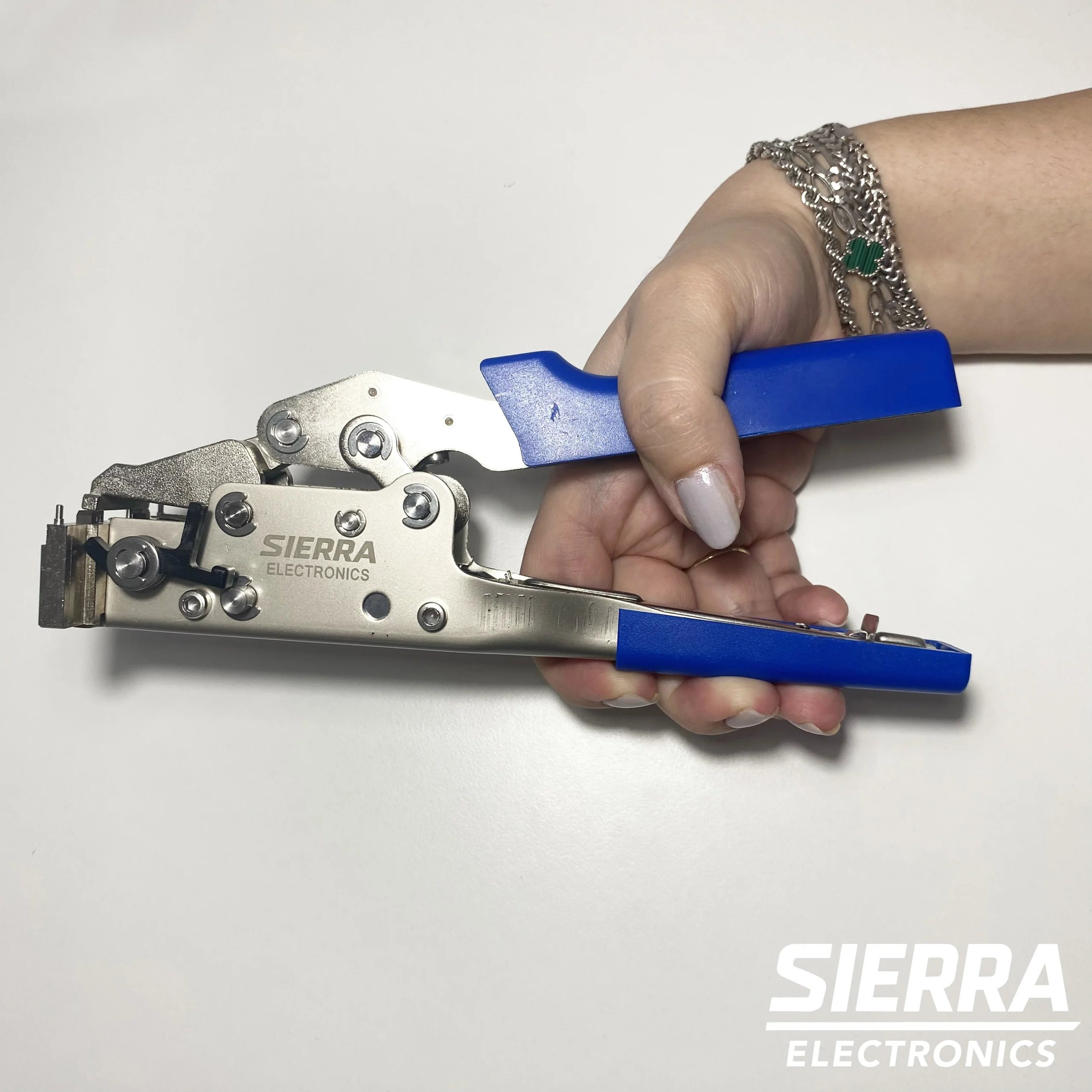

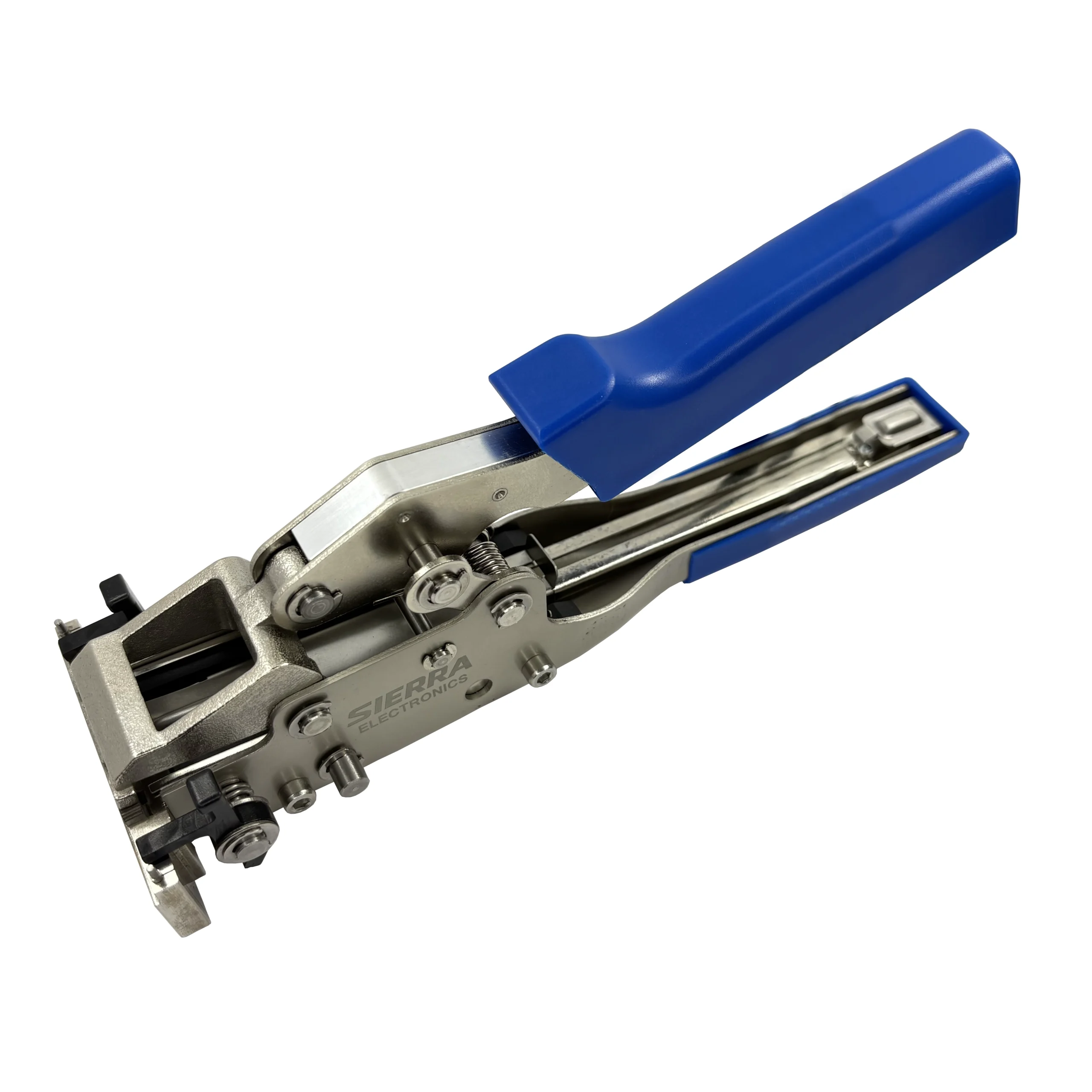

Semi-Automatic hand stapler style splicing tool.
Used for all sizes of carrier tapes paper or emboss SMT material.
The splicing tool stapler style requires the splicing shims clip frame Part #SSCF-1000.
Easy to install on docking stations.
$195.00
The Sierra Electronics Stapler-Style SMT Tape Splice Tool is the fastest, most operator-friendly splicing system in the SMT industry. Engineered and machined in the USA, this tool uses a 20-splice automatic cartridge that advances a new splice shim after every crimp, allowing rapid, consistent, and high-strength splicing with perfect alignment and no failures.
Chinese-imported splice tools and tapes routinely misalign, delaminate, bend under light pressure, or pop off under feeder tension. The Sierra stapler-style tool eliminates these problems entirely by delivering a mechanically locked, U.S.-made splice that remains stable under the most demanding feeder loads.
Ideal for high-speed SMT lines that demand both speed and reliability, this tool allows operators to splice a new reel to a depleted reel while the pick-and-place machine is still running, maintaining maximum production uptime.
The Sierra Electronics Stapler-Style SMT Splice Tool uses a precision-guided splice shim cartridge containing up to 20 mechanical splice shims. This system provides uninterrupted, back-to-back splicing capability, enabling operators to keep SMT lines running continuously with no feeder stoppage and no loss of alignment.
Our U.S.-made splice shims, alignment pins, hold-down bars, and spring-tensioned cartridge system ensure a splice that holds through the full feeder cycle, even in high-speed applications where imported splices typically fail.
This ensures each new splice shim advances into position automatically after every crimp.
This prevents slippage and misalignment during the crimp.
Accurate alignment is critical to proper feeder travel.
This creates a high-strength mechanical splice ready for immediate use.
Lift the spliced carrier tape from the tool and inspect it for proper alignment and a fully set mechanical crimp.
This ensures correct peel-back in the feeder and smooth travel through the pick-and-place system.
Imported splice tapes routinely fail here because their adhesive is too weak to handle feeder pull forces, causing the splice to pop off mid-run.
Chinese-import splice tapes frequently:
These failures cost SMT lines significant downtime and reduce production yield.
Stapler Feel, Industrial Power
Feels like a stapler. Hits like a press. That muscle-memory? Use it. Just load the clip, line it up, and punch through like a boss.

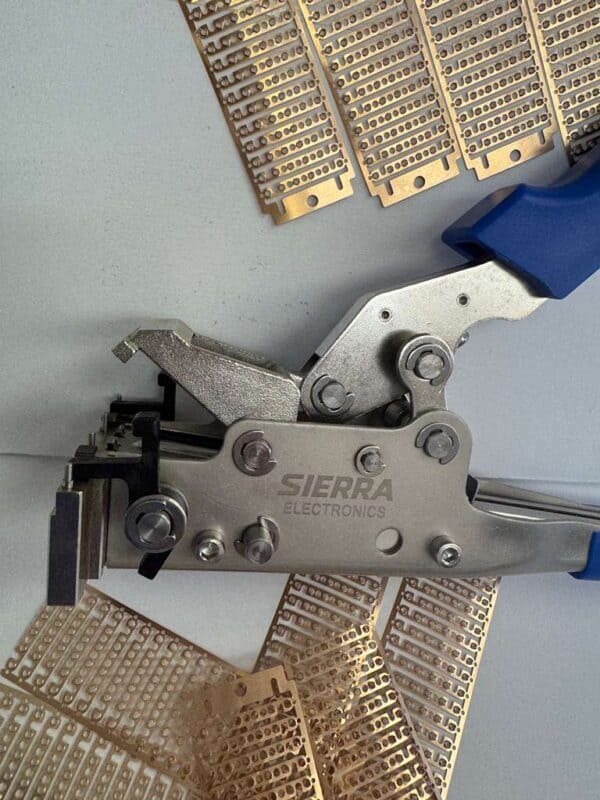

Solid Metal Splice Clips, Zero Wiggle
This isn’t sticky tape or plastic patches. You’re locking down real steel clips with a single shot—clean, strong, feeder-friendly.
Precision Every. Single. Time.
The jaws don’t drift. The punch doesn’t miss. You’ll hit the exact spot over and over again, like a machine with muscle memory.
No Power? No Problem.
No plugs, no charging, no lag. It’s 100% mechanical and always ready—because your downtime shouldn’t wait for a reboot.
Works Across Tape Types
8mm, 12mm, 16mm, 24mm… paper or plastic—bring it on. This tool grips and clips like it was born to do it.
Portable and Brutally Durable
Throw it in a tool bag. Drop it on the floor. Still works. It’s all metal, no delicate nonsense.
Fast Learning Curve
Show someone once and they’re good to go. It’s that easy. This isn’t rocket science—it’s smart, street-level engineering.
Designed for Nonstop Use
Spring-loaded action, ergonomic handle, zero fatigue. Clip after clip, shift after shift, your hand won’t hate you.
Tight Splices That Feed Smooth
The result? Tight, aligned, jam-free splices that keep your feeders moving and your line breathing easy.
Minimal Maintenance
Wipe it down. Check the clip load. That’s it. No oil baths, no nonsense.
Simple—it staples metal splice clips into SMD carrier tape. Clean, fast, strong. No tape, no glue. Just press and go.
Yep. Same motion. Same instinct. But instead of paper, you’re fusing two pieces of carrier tape so your line doesn’t skip a beat.
8mm to 24mm wide, paper or plastic, embossed or flat. If your machine feeds it, this tool clips it.
Rock solid. It’s made for production lines, not arts and crafts. The splice stays tight, flat, and jam-free.
The tool doesn’t come with clips by default, but we’ve got compatible metal splice clips ready to roll. Easy to reload.
Under 10 seconds if you’re moving slow. Under 5 if you’re in the zone.
Yes. It’s built tough. Toss it, drop it, forget about it—it’ll still work when you come back to it.
