Small-batch SMT assembly isn’t just about fewer components; it’s about precision, consistency, and avoiding costly errors. For engineers, prototype labs, and low-volume production teams, a single mispick can disrupt the line, waste components, and delay development.
The Hidden Challenges of Small-Quantity SMT Assembly
Even just 10-20 ICs can create unexpected issues:
- Tape tail instability: Causes misalignment in the last few components
- Manual placement errors: Human error increases with small batch sizes
- b: Loose or poorly spliced tape leads to failed pickups
Common Small-Batch SMT Errors vs. Solutions
| Error |
Cause |
Solution |
Impact |
| Mispick |
Tape tail instability |
Use leader & trailer |
Lost ICs, line stoppage |
| Feeder misalignment |
Loose carrier tape |
TapeSplice splicing |
Reduced pickup reliability |
| Manual placement errors |
Low batch ICs |
Automated feeder-ready ICs |
Accuracy drops |
DigiReel’s Leader & Trailer Trick That Guarantees Perfect Placement
Every DigiReel includes:
- Leader: Guides tape into the feeder smoothly
- Trailer: Prevents fishtailing of the last pockets, maintaining pickup reliability
Graph Concept:
Bar Chart – Mispick Rate by Tape Type
- X-axis: Tape Types (Standard, TapeSplice, DigiReel)
- Y-axis: Mispick Rate (%)
- Insight: TapeSplice and DigiReel dramatically reduce errors compared to standard tape
Why Prototype Labs Can’t Afford to Ignore TapeSplice
IC pickup reliability is critical:
- Errors in low-volume assembly can double cost per IC
- TapeSplice ensures feeder-ready stability even for as few as 5 ICs
- Real-world labs report reduced line stoppages by 80% using spliced tap
5 Metrics That Show Your SMT Workflow Needs an Upgrade
- Mispick Rate > 5% for small batches
- Feeder Pauses > 2/hour
- Manual Rework > 10 ICs/day
- Prototype delays > 1 day per build
- Inconsistent IC placement height

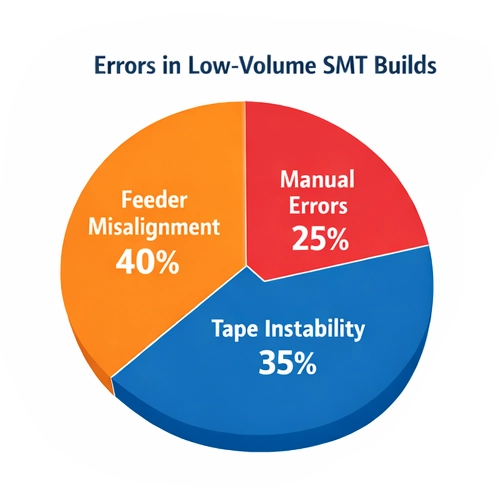

Error Types in Small-Batch Builds
Segments: Feeder misalignment (40%), Tape instability (35%), Manual errors (25%)
Conclusion and Key Takeaways
- Small-batch assembly requires production-grade practices
- DigiReel and TapeSplice solve common errors via leader/trailer design and splicing
- Prototype labs benefit from reduced mispicks, faster setup, and predictable builds
