Selecting the right pick-and-place machine is one of the most critical decisions in building a reliable and efficient SMT production line. Whether you’re assembling prototypes, running high-mix batches, or operating a full high-speed manufacturing environment, the performance of your placement system directly affects throughput, accuracy, and overall product quality. Modern pick-and-place machines offer a wide range of capabilities—from ultra-fast chip shooters to flexible modular systems designed for precision and versatility.

Today we will break down the top-performing machines on the market today, highlighting their strengths, performance benchmarks, and ideal use-cases to help you choose the best solution for your SMT workflow.

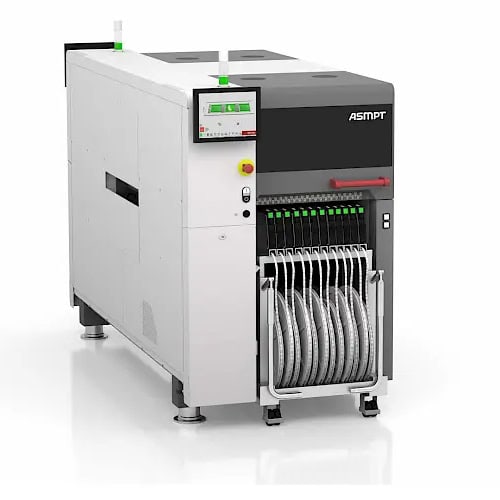

ASM SIPLACE TX Series

Very high speed — up to ~96,000 CPH for TX2i.
Excellent accuracy (3σ ~ 25 µm for some heads).
Flexible component spectrum (very small to large).

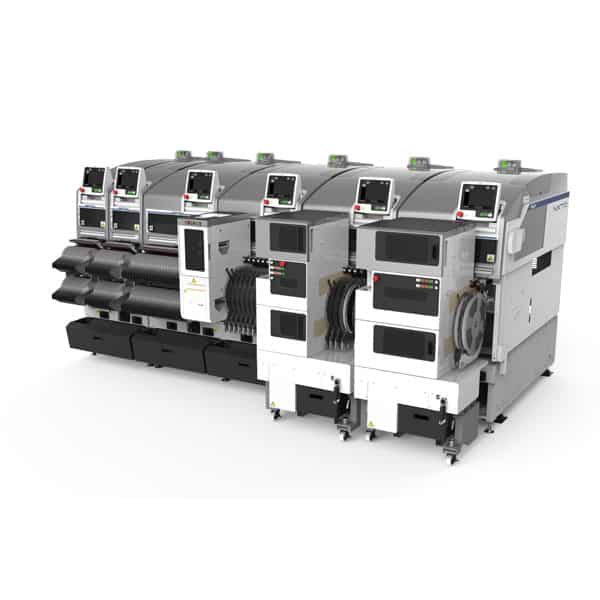

Fuji NXT III (e.g., M3 III / M6 III)

Highly modular
Speed: with H24G head, ~37,500 CPH
Precision: ± 0.025 mm placing accuracy (3σ) in standard mode
Supports very small components (0201) with appropriate head.

Pantera-X (SMD placement system by Swiss maker)

Designed for small to medium enterprises (SMEs) with flexible production.
Feeder capacity: up to 115 × 8 mm tapes.
Placement speed: ~4,500 CPH (more suited for high-mix, low-volume).
Vision system: laser + top-down vision to ensure alignment.

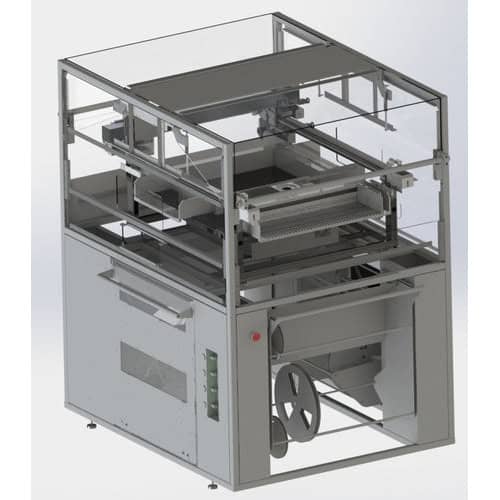

Mechatronic P40

Up to 4 pick-and-place heads
Can handle components from 0201 up to 40×80 mm
Good for low to mid-volume production
Placement rate: up to 4,500 cph (with 4 heads)

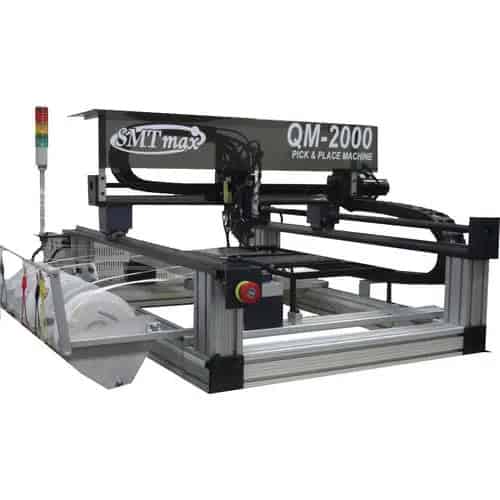

SMTmax QM2000

A table-top fully automated pick & place machine, good for prototypes and small batches.
Two pick-up heads.
Placement rate: ~3,000 parts per hour.
Vision system: up-looking camera (inspection) + down-looking for fiducial alignment.

Mechatronic P40

Feeder capacity: supports large feeder setups with intelligent electronic feeders.
Placement speed: up to 86,000 CPH (model-dependent).
Vision system: multi-camera + 3D component recognition for ultra-accurate placement.
Component range: from 0402 micro-components to large connectors and odd-form parts.
Suitable for: fully automated, scalable production lines with continuous operation.

Tips for Choosing the Right Machine

Volume & Speed: If you’re producing at scale, go for high-speed machines (like SIPLACE or Fuji). For prototyping or small runs, a tabletop machine (like QM2000) may be sufficient.
Component Variety: Check what component sizes your machine will need to handle — very small chips (0201), large ICs, BGAs, etc.
Feeder Slots: More feeders = more variety in one run, but also more cost/complexity.
Vision System: Critical for accuracy — for high precision, machines with good up/down vision systems help a lot.
Footprint: Make sure you have enough space for the machine + feeders + other line equipment (printer, oven, inspection).
Service & Parts: For industrial machines, support and spare parts are very important.
