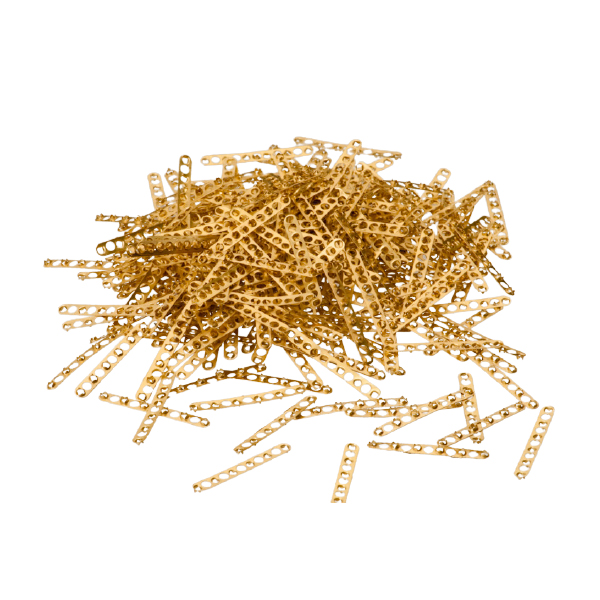

8 mm – 0.60 mm thickness
8 mm – 0.95 mm thickness
Designed for Panasonic feeders and compatible SMT machines.
Ensures reliable and durable splices in carrier tapes.
Reduces feeder downtime and increases production efficiency.

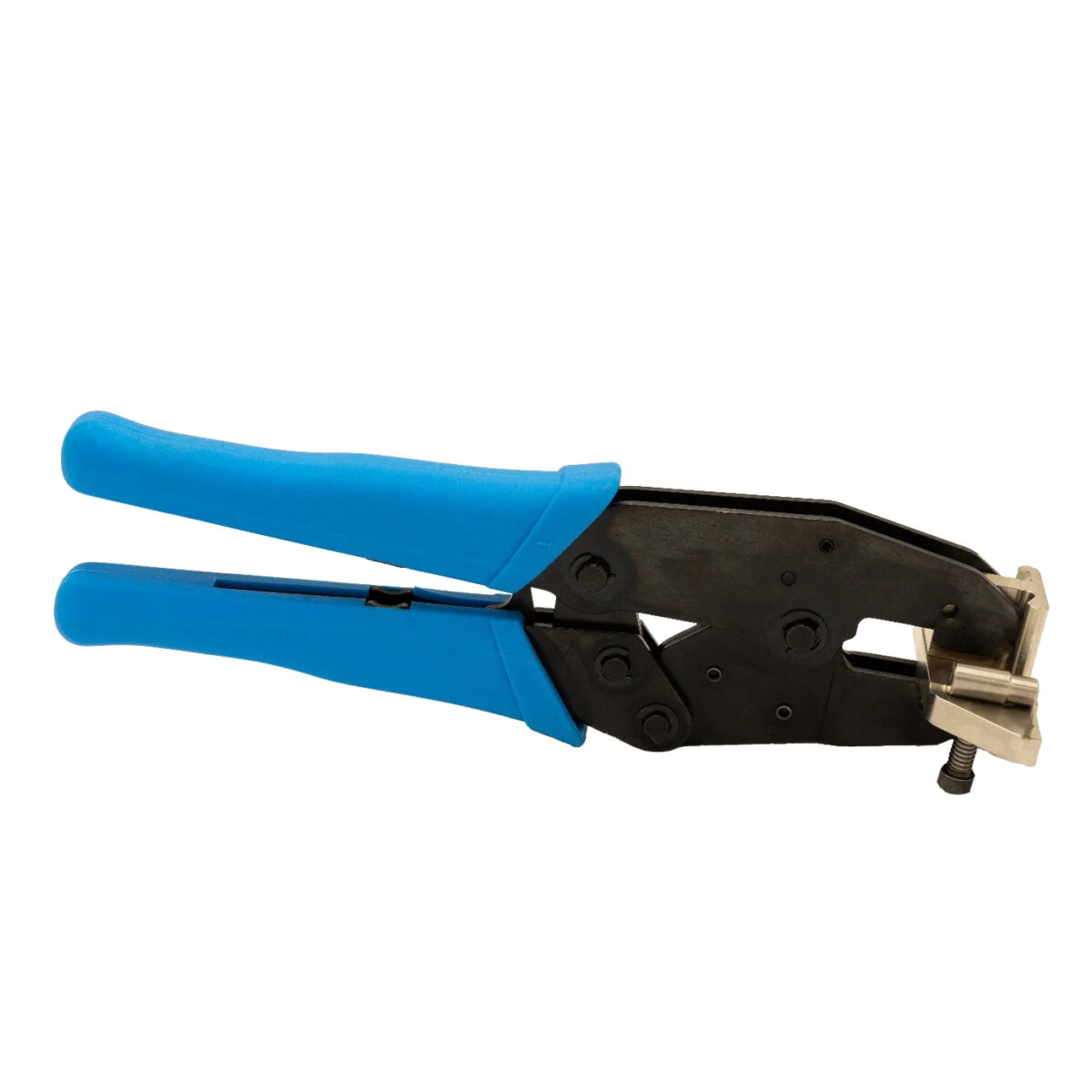

Our TS-41097 joining tool uses a single brass spacer to connect the two ends of component carrier tapes. It can be used with a single spacer or with any Panasonic tape with built-in spacers.
Ergonomic design specifically crafted for SMT carrier tapes of all sizes.
For 8mm, 12mm, 16mm, 24mm carrier tape
Part Number: 8MS-41097 / 12MS-41097 / 16MS-41097 / 24MS-41097

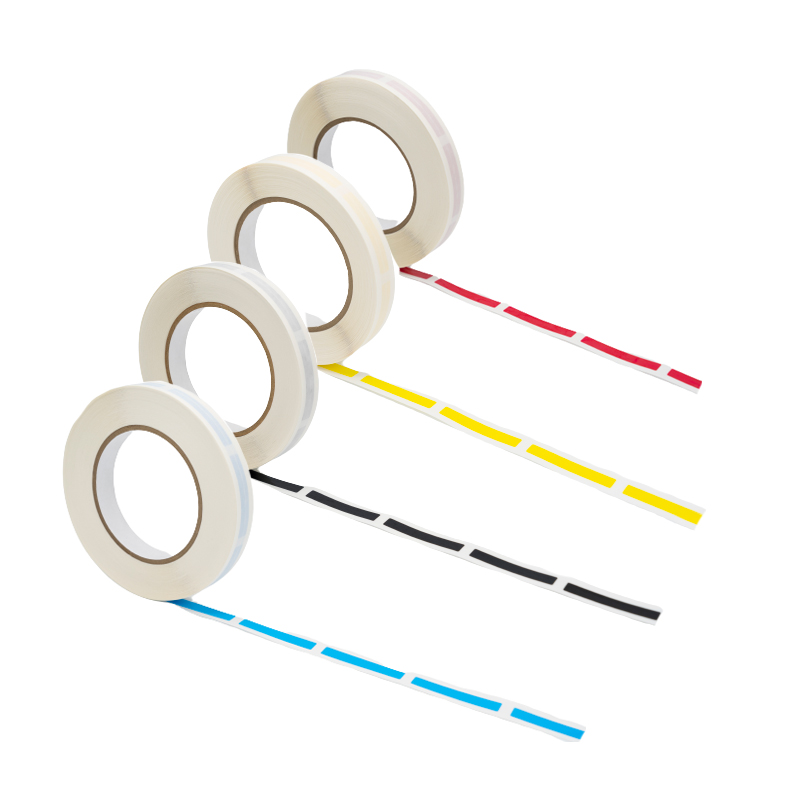

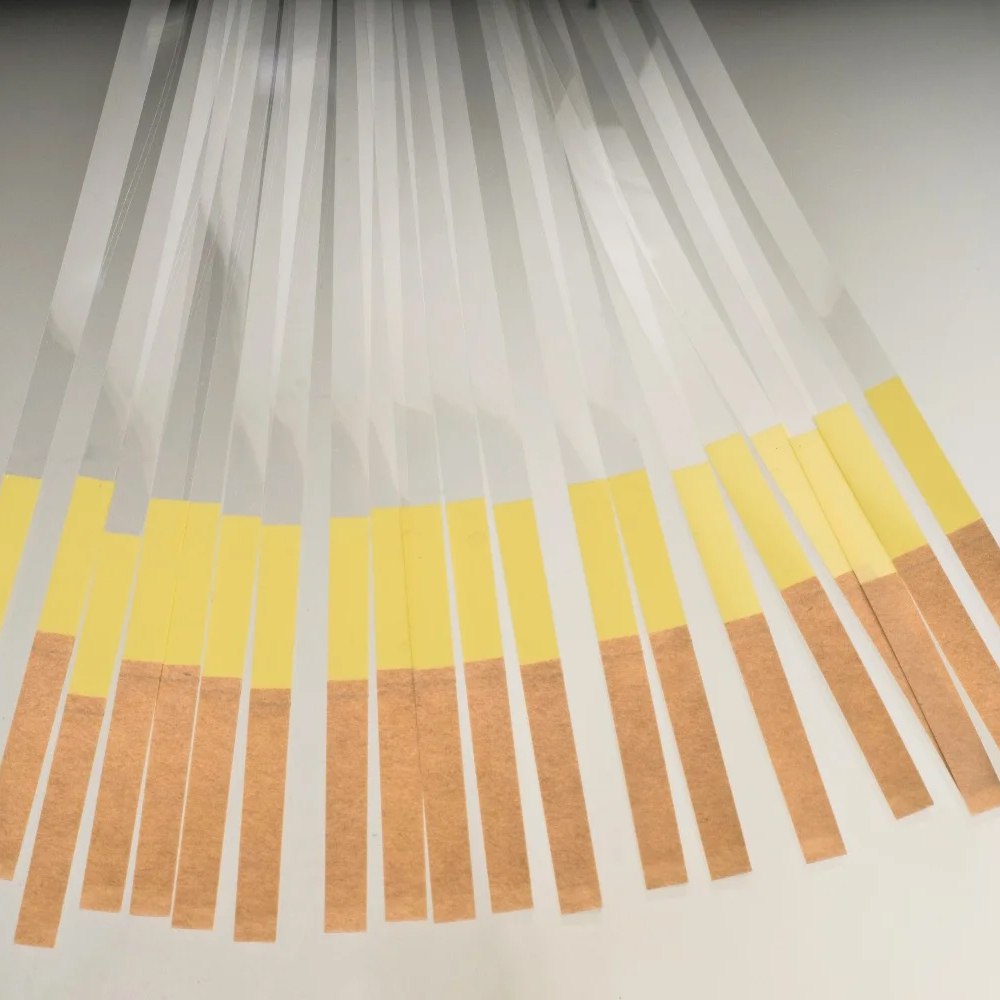

A conformable 1.0 mil polyester film coated with a very aggressive high-shear rubber adhesive system. Excellent for butt splicing and roll closure of difficult-to-stick surfaces in environments below 150°F.
| Physical Characteristics Nominal Values Color | Yellow, Red, Black |
|---|---|
| Total Thickness, mils | 1 |
| Adhesive Thickness, mils | 1.75 |
| Adhesion to Stainless Steel, OZ | 100m |
| Tensile Strength lbs/in | 24 |
| Elongation % | 100 |
The Hostaphan 2707 polyester film is chemically treated on one side to reduce static electricity and improve handling. It combines high durability with balanced shrinkage for better flatness after heat treatment.
Hostaphan 2707 is designed for markets requiring good handling and reduced static electricity. The one-side chemical treatment is antistatic.
The property values of Hostaphan 2707 below are typical measurements. For more information on series selection, functional behavior based on end use, film processing, standard roll configuration, and gauges, please contact a Mitsubishi Polyester Film sales representative.
| Property | Unit of Measure | Typical Value | |
|---|---|---|---|
| Surface Yield | in²•mil/lb | 19,800 | ASTM D 4321 |
| m²•mm/kg | 717 | ||
| Tensile Strength MD | psi | 30,000 | ASTM D 882 |
| kg/cm² | 2,110 | ||
| Yield Point (F5) MD | psi | 15,000 | ASTM D 882 |
| kg/cm² | 1,050 | ||
| Modulus MD | psi | 500,000 | ASTM D 882 |
| kg/cm² | 35,200 | ||
| Coefficient of Friction (A/B) kinetic | – | 0.50 | |
| Shrinkage MD | % | 1.3 | 30 min at 150 °C |
| Shrinkage TD | % | 1.3 | |
| Density | g/cm³ | 1.395 | ASTM D 1505 |
| Total Haze* | % 370 gauge | 18.0 | ASTM D-1003 |
| Property | Unit of Measure / Conditions | Typical Value | Test Standard Specification | Test Conditions |
|---|---|---|---|---|
| Surface Resistivity | ohms | 5.0 × 10¹⁰ | ASTM D 257 | 23 °C at 50% RH |
8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm

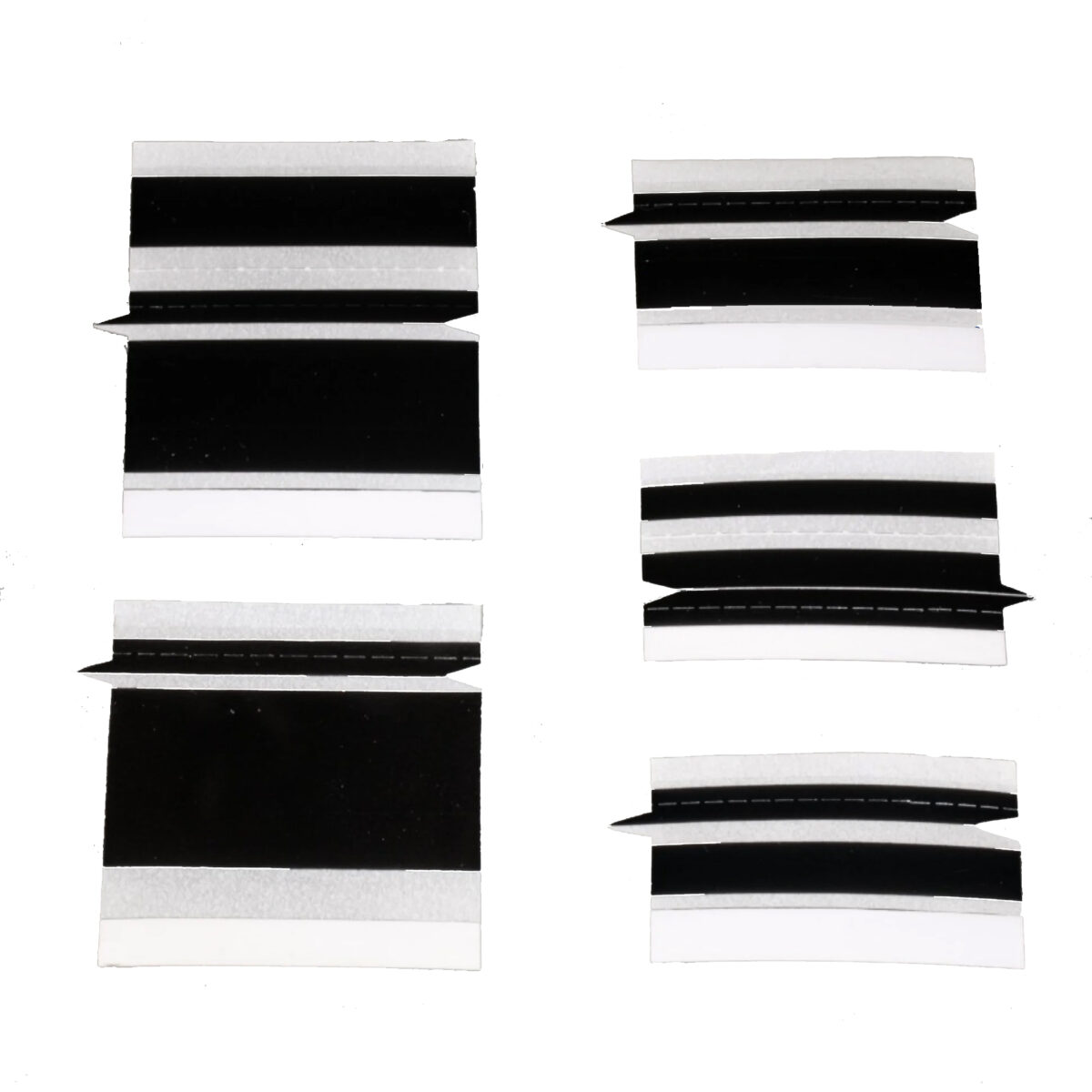

This joining tape is used to connect carrier tapes during the SMT process. It consists of a black tape strip and a spacer. Made from our patented material, it provides superior adhesion. The right-arrow spacer on the joining tape allows machines to detect the splices on various Panasonic equipment. The black tape is perforated to allow a small black tape tab to cover the drive holes of the junction sensor gear.
| Size | Pin Dimensions | Carrier Tape | QTY/Box |
|---|---|---|---|
| STSS-2260608AR7 | 3 x 40 mm | 8 mm | 500 pcs/box |
| STSS-2260612AR | 11 x 40 mm | 12 mm | 500 pcs/box |
| STSS-2260616AR | 15 x 40 mm | 16 mm | 500 pcs/box |
| STSS-2260624AR | 21.5 x 40 mm | 24 mm | 250 pcs/box |
| STSS-2260632AR | 28 x 40 mm | 32 mm | 250 pcs/box |
| STSS-2260644AR | 40 x 40 mm | 44 mm | 250 pcs/box |
| No | Test Item | Value |
|---|---|---|
| 1 | Peel Force (N/25 mm) at 180° | ≥ 15 |
| 2 | Holding Time (H/25*25 mm) | ≥ 100 |
| 3 | Tensile Strength at Break (N/25 mm) | ＞4.0 |
The Panasonic Smart Detection Splicing Tape is designed for high-reliability splicing of carrier tapes used in SMT (surface-mount technology) production. It ensures stable feeding and precise component positioning without requiring spacers.
| Specification | Property |
|---|---|
| Type | Splicing tape (smart detection, spacer-free) |
| Available Tape Widths | 8 mm, 12 mm, 16 mm, 24 mm |
| Material | High-strength polyester adhesive tape |
| Color | Yellow (standard) |
| Adhesion Force | ≥ 20 N/25 mm |
| Peel Strength | ≥ 1.2 kgf |
| Temperature Resistance | -10°C to 60°C |
| Shelf Life | 24 months (in original packaging, controlled environment) |
| Property | Description |
|---|---|
| Material | Conductive polystyrene (black) |
| Thickness | 0.25 – 0.35 mm (typical) |
| Available Widths | 8 mm, 12 mm, 16 mm, 24 mm, 32 mm, 44 mm, 56 mm |
| Surface Resistivity | < 1.0 × 10⁵ Ω/sq (conductive range) |
| Color | Black |
| Perforation | Flat with sprocket holes only |
| Sprocket Hole Diameter | 1.5 ± 0.05 mm |
| Pitch (center-to-center holes) | Standard: 4.0 mm (per EIA-481) |
| Tensile Strength | ≥ 20 MPa |
| Temperature Range | -20 °C to +60 °C |
| Compliance | EIA-481 standard for tape reader holes |
The following table shows typical values for black conductive polystyrene products manufactured by Sierra Electronics Inc.

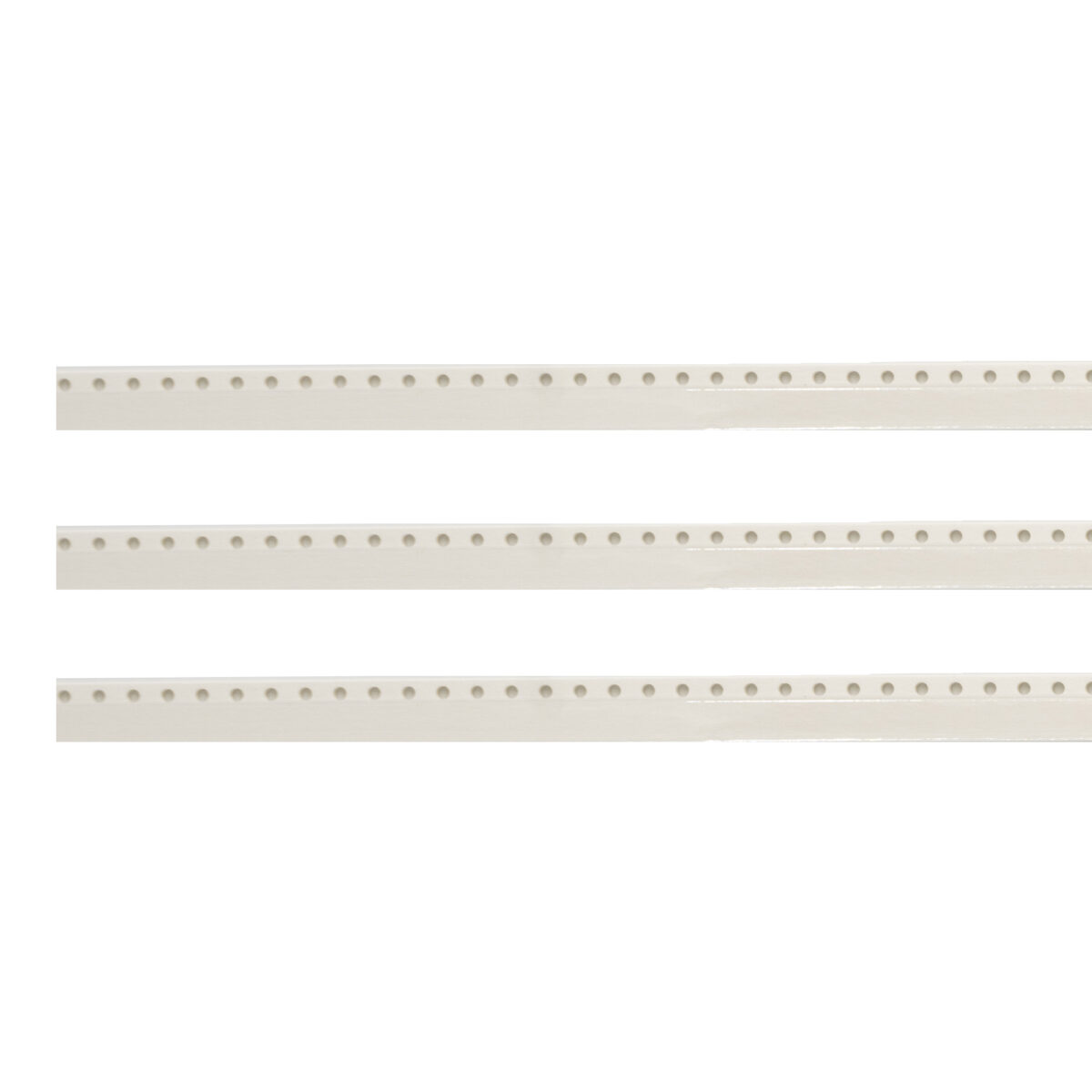

| Property | Typical Value | Unit | Test Method | |
|---|---|---|---|---|
| Physical: | Specific Gravity | 1.09 | g/cm³ | ISO 1183 |
| Tensile: | Tensile Strength at Yield | 24 | MPa | ISO 527 |
| Elongation at Break | 16 | % | ISO 527 | |
| Flexural Modulus | 2172 | MPa | ISO 178 | |
| Impact: | Notched Izod | 4 | J/m | ISO 840 |
| Thermal: | Heat Distortion | 75 | °C | ISO 75 |
| Electrical: | Volume Resistivity | 107 | Ohm/cm | IEC 60093 |
| Surface Resistivity | <105 | Ohm/sq | IEC 60093 | |
| Specification | Property |
|---|---|
| White paper on | base materials |
| Tape type: | Flat starter tape with sprocket holes and cover tape |
| Available widths | 8 mm |
| Hole type | Sprocket/Drive holes (EIA-481 standard) |
| Cover tape type | Pressure-sensitive adhesive cover tape |
| Adhesion strength | High peel strength for secure splicing |
| Temperature resistance | 0°C – 60°C (storage/operation) |
| Shelf life: | 24 months (when stored properly) |
Sierra Electronics does not use the following materials in the manufacture of any of its products:
Sierra Electronics has implemented a RoHS-compliant and lead-free program in response to concerns about the environmental impact of lead (Pb) and other hazardous substances used in the manufacture of electronic components and assemblies.
All Sierra Electronics products are manufactured in the United States.
